Overview of the Archer 4 Hardware
The Archer 4 is a rugged Android handheld with a 6.26" FHD+ (2280 × 1080) capacitive touchscreen, two programmable keys, fingerprint sensor, front and rear cameras, and built-in Wi-Fi, Bluetooth, cellular, and GNSS. When purchased from American Innovations for PCS Field Data Collector, the device includes the GNSS Expansion Pod for sub-meter GPS accuracy.
The Archer 4 runs Android 16 (Google Mobile Services certified) and can be connected to the American Innovations DVM2130 for pipeline survey readings. Contact AI Sales at 1-800-229-3404 for more information about optional accessories.
tap the
Install Apps icon to go to the Juniper web site
Front and Back Features

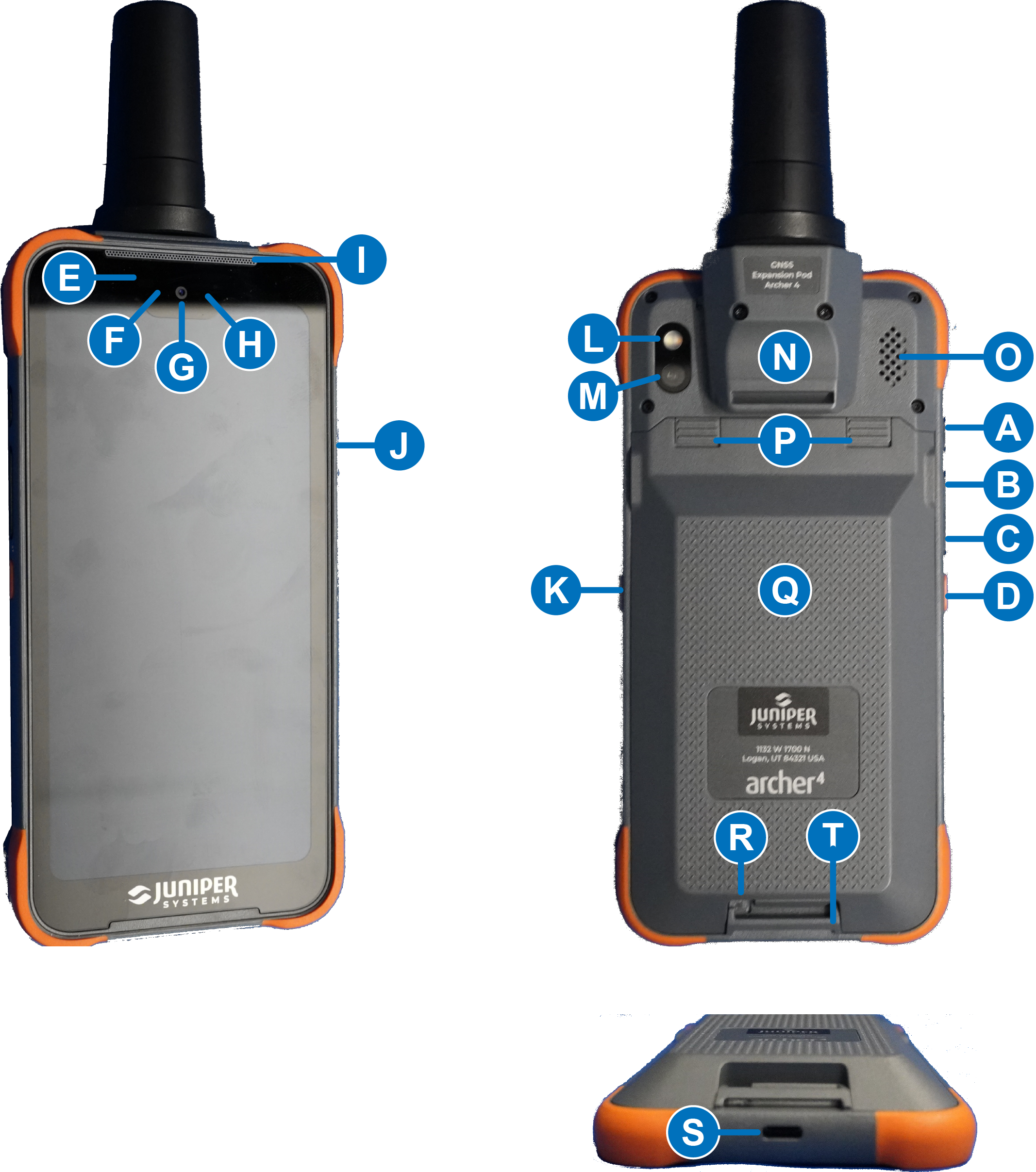

| Label | Feature |
|---|---|
| A | Power button |
| B | Volume up |
| C | Volume down |
| D | Programmable key P1 |
| E | Proximity sensor |
| F | Ambient light sensor |
| G | 16 MP front camera |
| H | RGB LED indicator |
| I | Front speaker |
| J | Fingerprint sensor |
| K | Programmable key P2 |
| L | Camera flash / flashlight |
| M | 48 MP rear camera |
| N | Expansion pod attachment |
| O | Rear speaker |
| P | Battery door locks |
| Q | Battery door |
| R | Microphone |
| S | USB Type-C connector |
| T | Hand strap mounting loop |

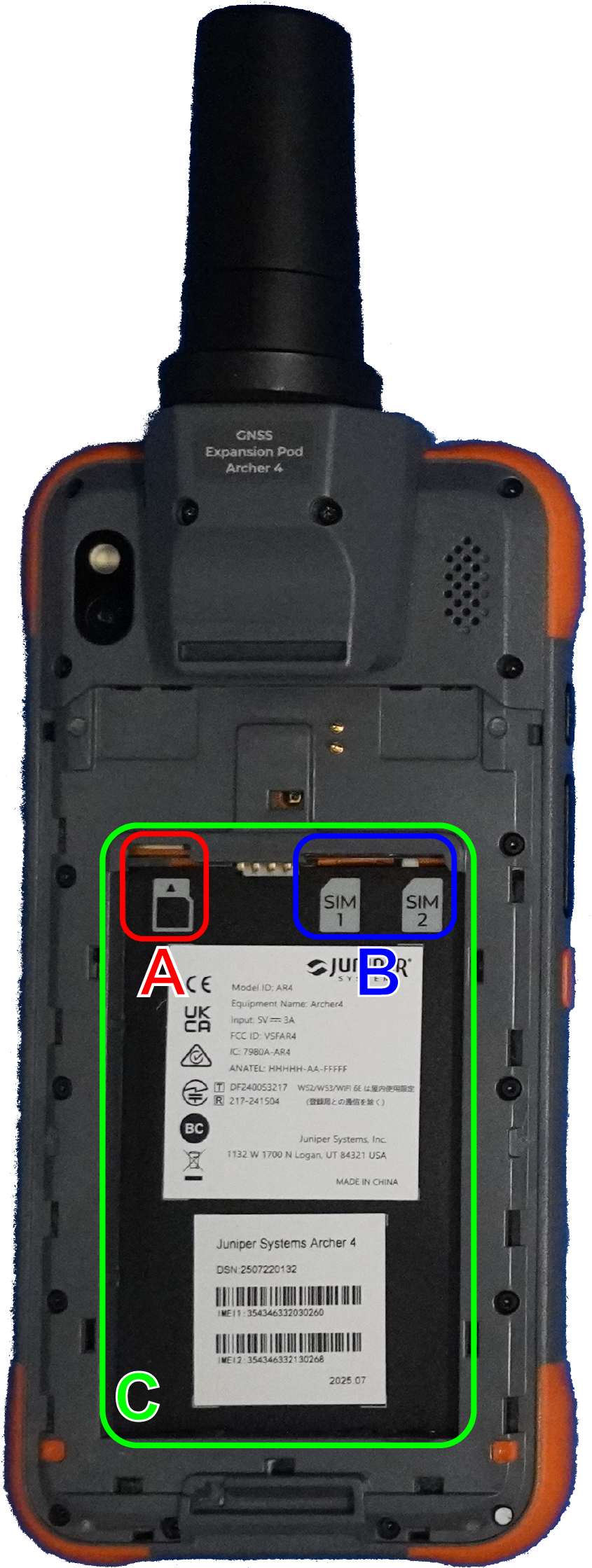

The back of the Archer 4 includes:
A — Micro SD card slot
B — Two nano SIM card slots
C — Battery compartment
Battery Compartment and Card Slots
The GNSS Expansion Pod attaches to the rear expansion pod contact pads and is included when the Archer 4 is purchased from American Innovations for FDC.

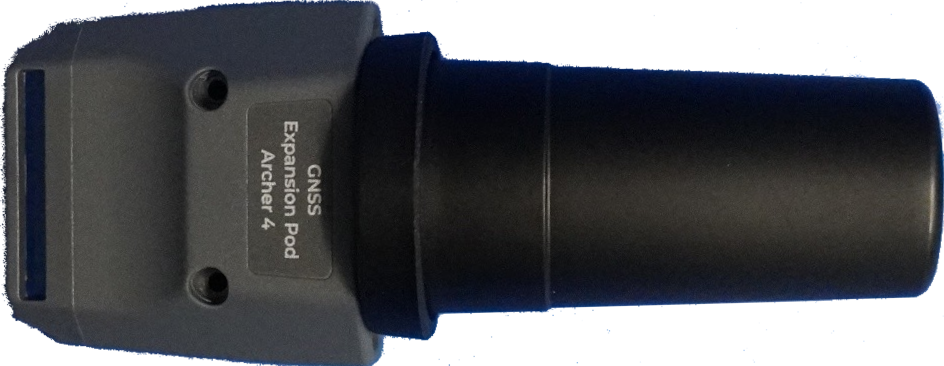

GNSS Expansion Pod

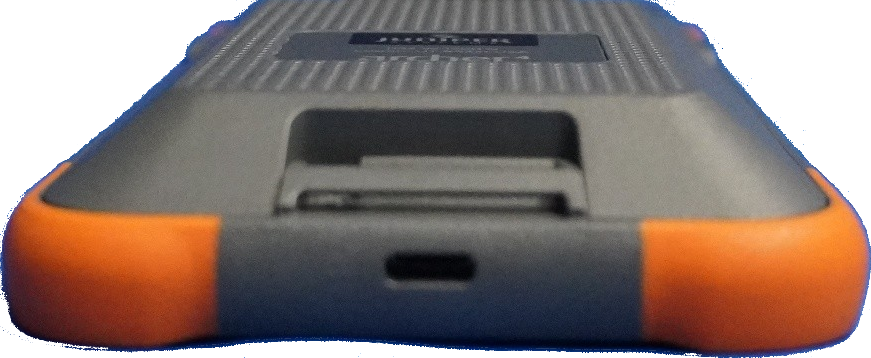

The USB Type-C port is located on the bottom of the Archer 4. Use the USB charger and cable supplied with the device.
USB-C Port
Refer to DVM1110 and DVM2130 Specifications for more information about the external DVM available for the Archer 4.
