SDT16 Family Configuration Settings

Most settings for the SDT16 family of units (SDT16-SAT, SDT16-GSM, and SDT16-ORB) can be set up as any for other unit types except for the data point settings. Data point settings unique to the SDT16 family include register, input state, battery status, battery voltage, and POR (power on reset). Refer to Common Configuration Tasks for more information on how to complete common configuration tasks.

If setting up an SDT16 unit to monitor pump run times, also refer to Create Run Time Views and Data Point Display As Options .

Data points can be enabled or disabled using the Enable and Disable buttons. You can also view disabled data points by checking the Show Disabled check box.

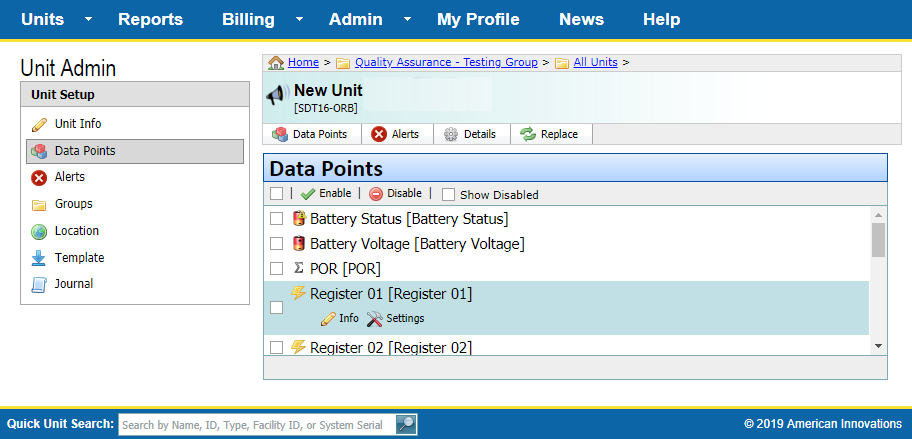

SDT16 Data Points Pane

The SDT16 family use the following data point settings fields:

• SDT16 Family Data Point Info Fields

• SDT16 Family Data Point Settings Fields
