Add or Delete a Record in a Continuous Survey

These instructions start with the assumption that the ISM module is already selected and the correct pipeline segments have been selected. For information detailing how to select pipeline segments, refer to Select ROWs.

Complete the following steps to add or delete a record in a continuous survey:

1. Click Data Entry > Edit ISM Data.

2. Select a continuous survey data type.



   Edit ISM Data Window

3. Select a survey folder with survey readings you want to modify from the Selected Continuous Survey drop-down list.

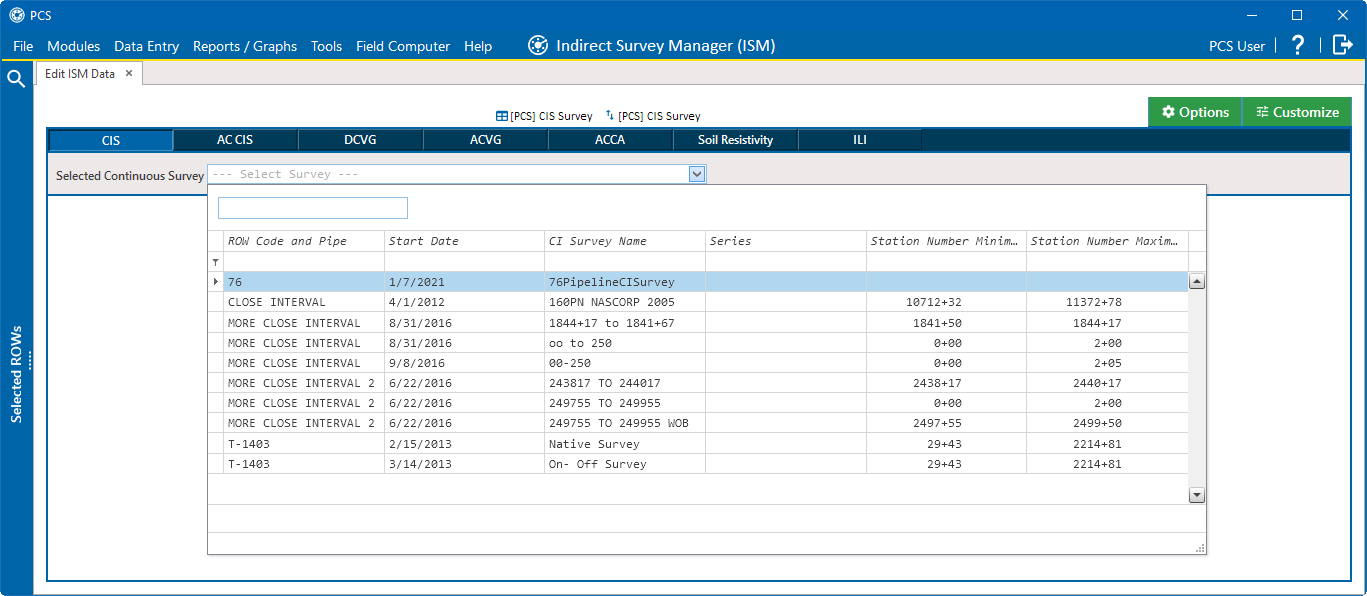

   Select Continuous Survey List

4. Click Add to open the Add Record window to add a record in the survey.



   Add Record Window

5. Type a survey location in the Station Number field. This field is required.

6. Click Save to add the record to the grid.

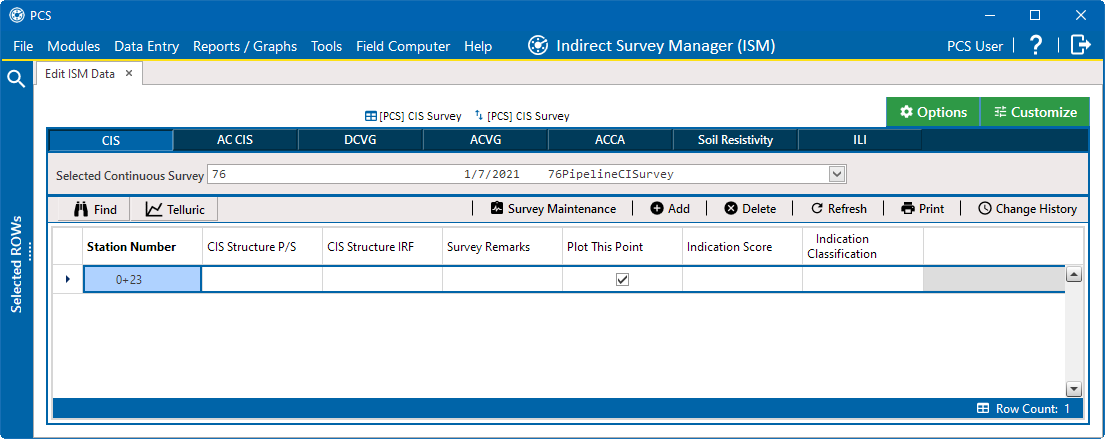

   New Record in CIS Continuous Survey

7. Enter any survey data as needed for the new record.

8. Repeat steps to add additional records as needed.

9. Click Refresh to update the grid.

10. To delete a record in a survey:

    1. Click a station number to select a row of records in the grid.

    2. Click Delete.

    3. Click Delete in the Delete Record window to delete the selected record. Click Cancel to cancel the operation.



       Delete Record in Continuous Survey

       A Warning message window displays.



       Warning Message

    4. Click Yes to delete the survey record or No to cancel the action.

    5. Click Refresh to update the grid.
