Mapped Facilities

Imported facilities that appear under the Mapped tab were validated during the Import Bullhorn Bridge Mappings process. A counter in the Mapped tab indicates the total number of mapped facilities that have been imported for the selected account/group. Facilities are listed in rows that contain the following identifying information:

  • Unit Name

  • Channel Label

  • Bullhorn Engineering Unit Label

  • Bullhorn Facility ID

  • Sub Facility Name

  • Facility Type

  • Row Code And Pipeline

  • Milepost

  • Location Description

  • PCS Property

  • Latitude

  • Longitude

  • Bullhorn Serial Number

  • PCS Serial Number

Follow these steps to review and manage mapped facilities:

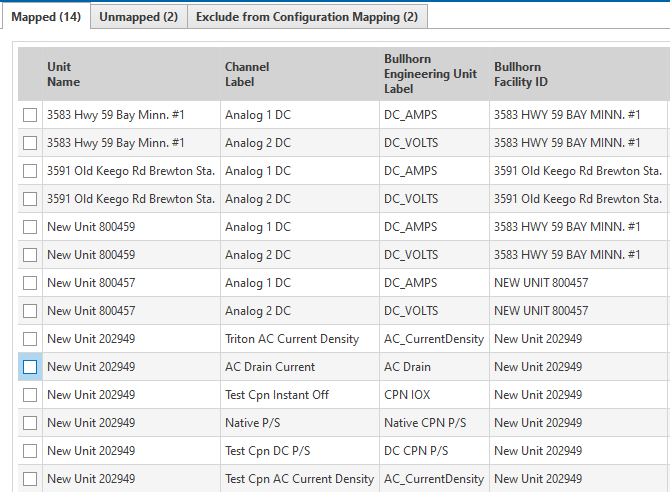

  1. Select the Mapped tab at the top of the Mapping window.

    Mapped tab

  2. Review the information for each mapped facility to ensure accuracy.

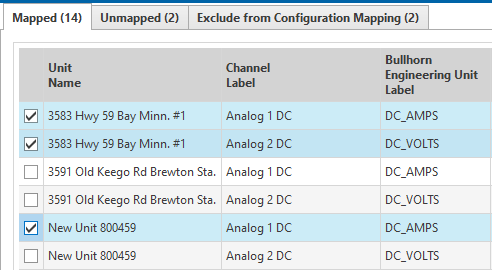

  3. If necessary, select the check box for any facilities to be unmapped.

    Select Facilities

  4. Click Unmap Selected Rows in the vertical blue toolbar.

    Unmap Selected Rows Option

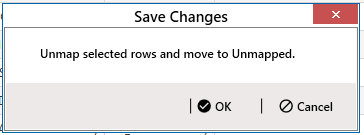

  5. Click OK in the Save Changes prompt.

    Save Changes Prompt

    Unmapped facilities will appear under the Unmapped tab in the Mapping window.

Proceed to the steps in Unapped Facilities.
