Running a Test Program

Before programming the interrupter, you can test the interrupter by running a test program.

With the main menu displaying, press to display and begin the Test Mode. Press PREV to cancel the test or when the test is done.

Test Mode

Test Mode

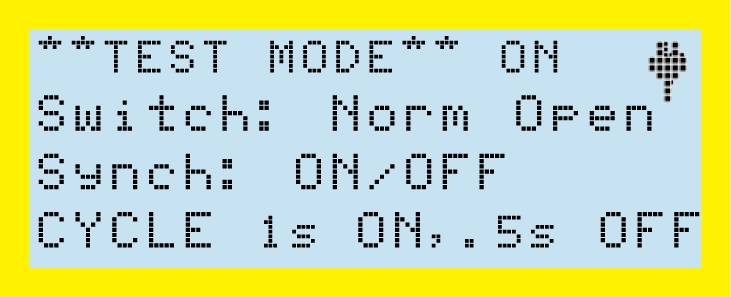

The following list describes the type of information shown on the Test Mode screen and that is used for the test:

  • TEST MODE ON/OFF/DONE — The cycle that the interruption is running during the test. The test runs through an off and on sequence for a few seconds. It will then display DONE when it completes the test. The plug symbol indicates that power is present.

  • Switch: Norm Open — Shows whether the relay is normally open or normally closed. The setting is determined by the Switch setting in Out Parameters (refer to Output Parameters).

  • Synch — Shows that synchronization begins with On. The setting is determined by the Int. Cycle setting in Out Parameters (refer to Output Parameters).

  • CYCLE 1s ON, .5s OFF — The timing of the on and off cycle.
