APM4AMCP Family Configuration Settings

Most settings for the APM4AMCP family of units (APM4AMCP-SAT) can be set up similar to other unit types except for the data point settings. Data point settings unique to the APM4AMCP family include analog, digital, active digital, and accumulator. Refer to Common Configuration Tasks for more information on how to complete common configuration tasks.

The APM4AMCP-ORB units are no longer sold or supported by American Innovations and are considered Legacy products. Documentation for these products can be found on the Legacy Products Support page. Refer to our End of Life policy for more information, as well as possible product replacements.

Data points can be enabled or disabled using the Enable and Disable buttons. You can also view disabled data points by checking the Show Disabled check box.

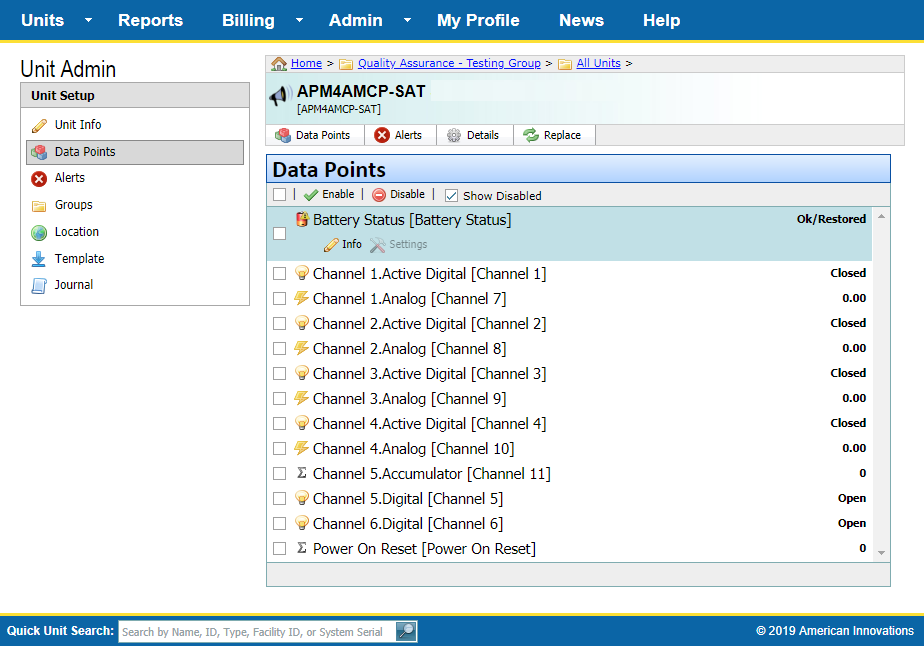

APM4AMCP Data Point Pane

The APM4AMCP family use the following data point settings:

• APM4AMCP Family Data Point Info Fields

• APM4AMCP Family Analog Data Point Settings Fields

• APM4AMCP Family Accumulator Data Point Settings Fields
