AOI Filter Templates

An AOI filter template is used on CartoPac Studio Solution Files without a Map Viewer where a map extent may otherwise not be selected.  By default, every new CartoPac Studio Solution file contains at least one AOI filter template.

Pre-configured AOIs may be added to the existing AOI filter template.

Complete the following steps to add a new AOI to an existing AOI filter template:

  1. Open CartoPac Studio's Solution Explorer window and expand the Filter Template folder.

  2. Click the AOI Drop Down Filter option.

  3. Select (Collection) value of the Dropdown Values property in the Properties window and click the ... button to open the String List Editor window.

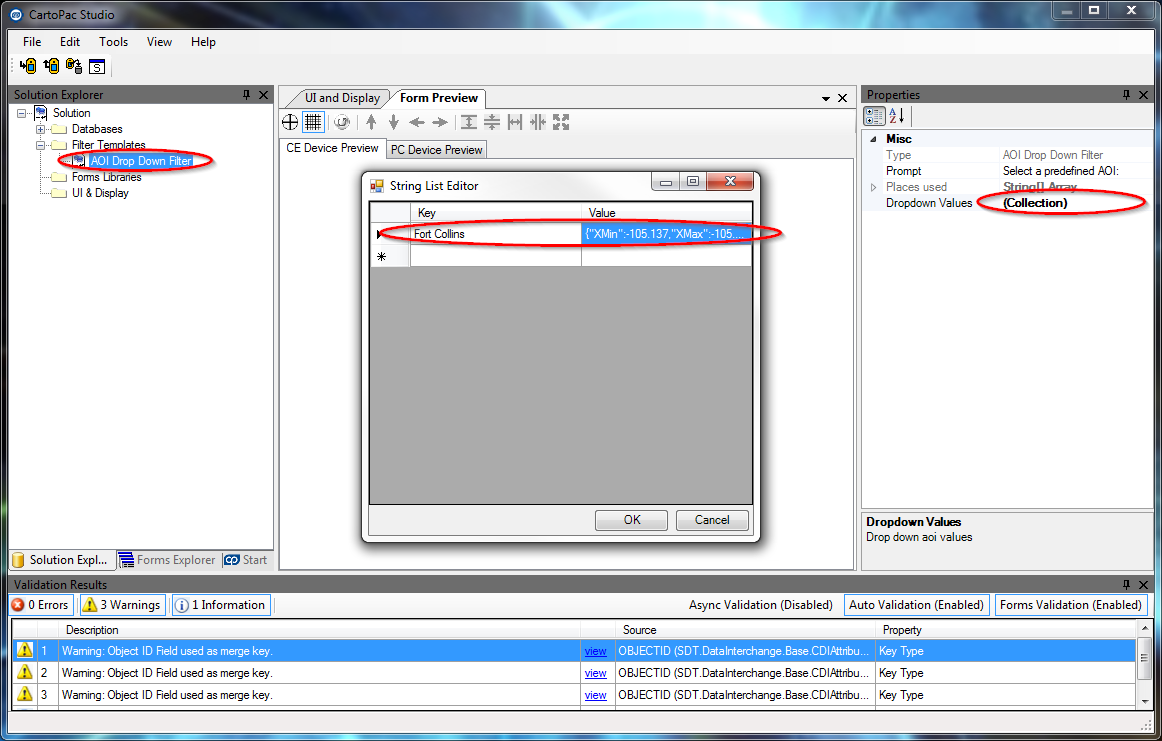

    AOI Filter Template and Properties

  4. Copy the Value from the existing Fort Collins Area of Interest, and paste it into a new record.

    5. The Key names will be listed in the drop-down dialog window when downloading a project for selection.  The Value string is formatted in JSON code using decimal degree values to specify the four corner points of a map extent for downloading a project by.

Map Extent values must be entered in decimal degree format using the WGS1984 Projection.  ESRI provides a helpful reference for assistance in identifying the coordinates of any map extent on the esri.com website.
