Bundling Configuration and Edit Layers

Bundling is configured from the CartoPac Map Services tab on the Map and Esri Service Administration page using the Bundling Configuration and Edit Layers tabs.

Only one Primary Bundling Table may be specified for a single connected Esri Feature Service.

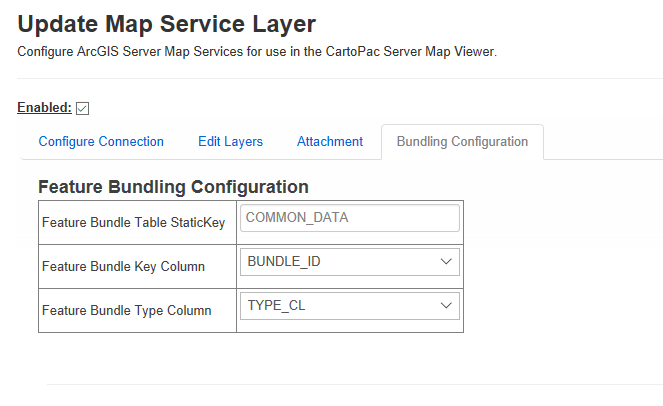

Bundling Configuration Tab

On the Bundling Configuration tab, enter the Static Key of the Primary Bundle Feature/Table, and indicate the fields used as the Primary Key and Bundle Type attributes.

Update Map Service Layer

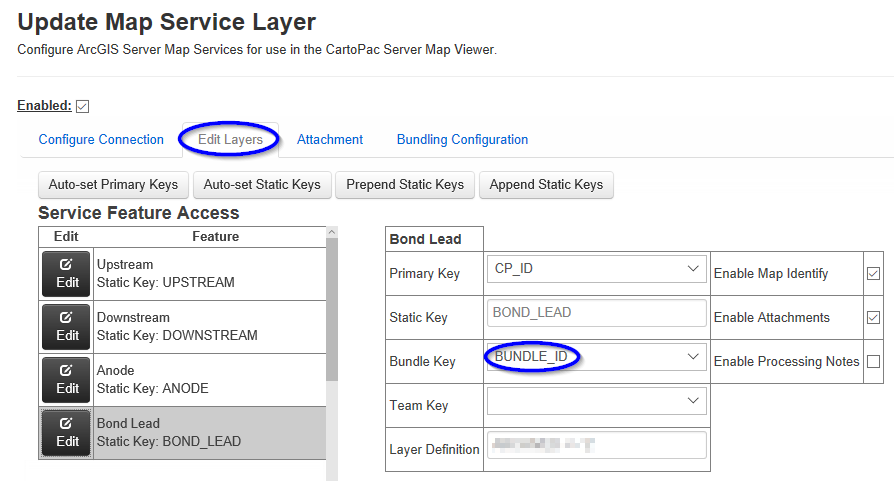

Edit Layers Tab

On the Edit Layers tab, for any features in the bundle, set the Bundle Key to the Foreign Key attribute.

Edit Layers
