Multilayer Summary Options

Complete the following steps to view Multilayer Summary information.

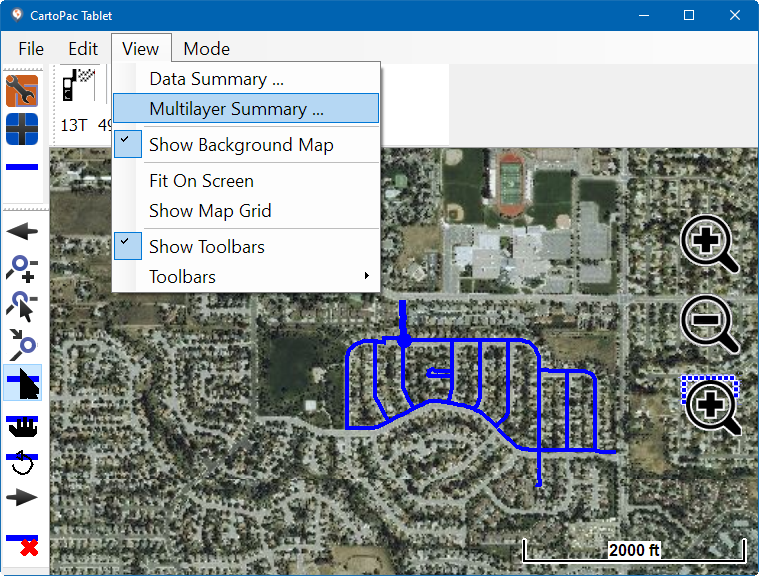

  1. Select View > Multilayer Summary.

    Edit Menu - Data

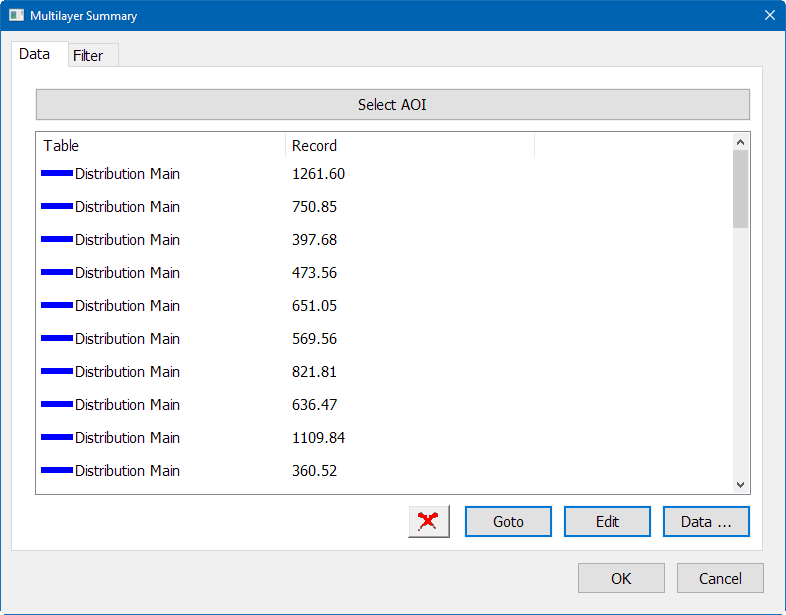

    The Multilayer Summary window displays. The following image is an example window.

    Multilayer Summary Window

    If the record is read-only, the Multilayer Summary window will be slightly different; some buttons will be grayed-out to denote that those functions are not available for this record.

  2. From the Data tab of the Multilayer Summary window, you can perform any of the following tasks for a record.

    3. Read-only records cannot be deleted or edited.

    • Delete Record — tap the button to delete the currently selected record.

    • Go To Record — tap the Goto button to close the Data Summary window and have the selected record display on the map.

    • Edit Record — tap the Edit button to close the Data Summary window and display the edit buttons. Refer to Edit Data for more information.

    • Edit Data — tap the Data button to open the data point form where information about the record can be edited. For read-only records, a listing of data input information displays for reference.

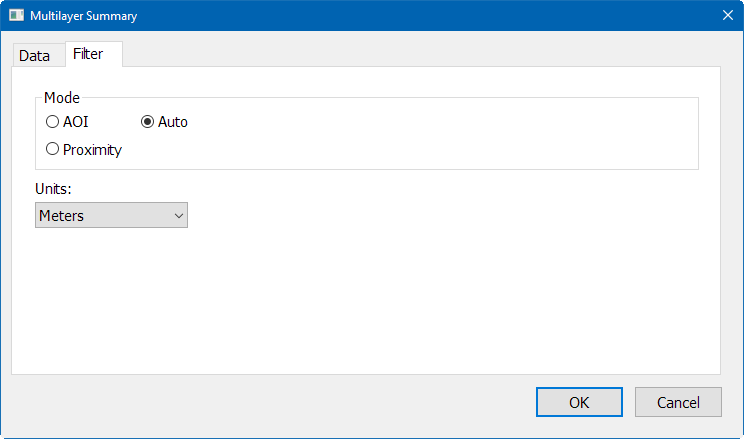

  3. Select the Filter tab of the Multilayer Summary window to set how the data on the Data tab will be filtered.

    Data Summary Window - Filter Tab
