Supplied Power Cables and GPS Antenna

The following cables are provided in the installation kit with the interrupters. The interrupters consume approximately 120 mA. External relay current consumption is additional, which is typically less than 10 mA for a solid state relay and as high as 400mA for a mechanical mercury relay.

• Power Cable and AC/DC Power Input Cable with Alligator Clips

  Specifications for the cables after assembly:

  • INPUT: 8-42 V AC or 10-60 V DC.

  • OUTPUT: 10-14 V DC (500 mA maximum).
    Red indicates positive (+); black indicates negative (–).

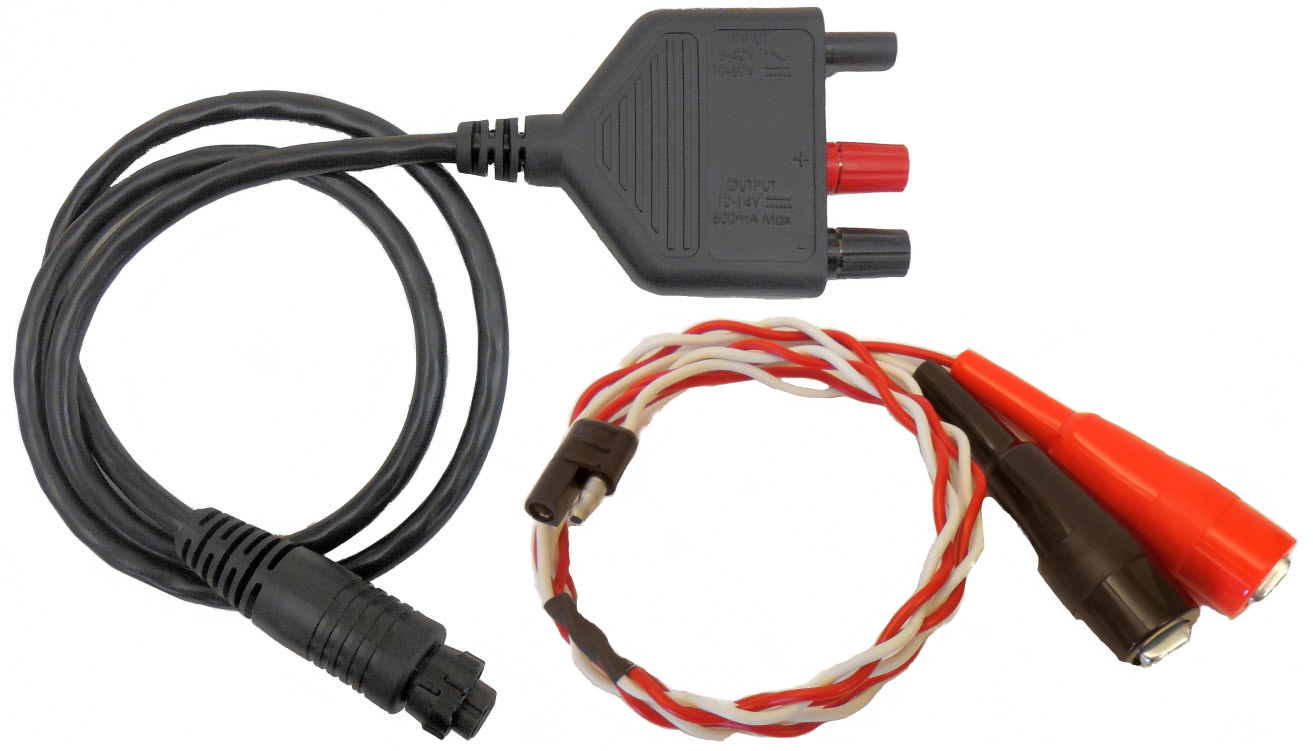

  Power Cable and AC/DC Power Input Cable with Alligator Clips

• GPS Antenna: The GPS antenna should be mounted on a metal surface with a clear view of the sky.

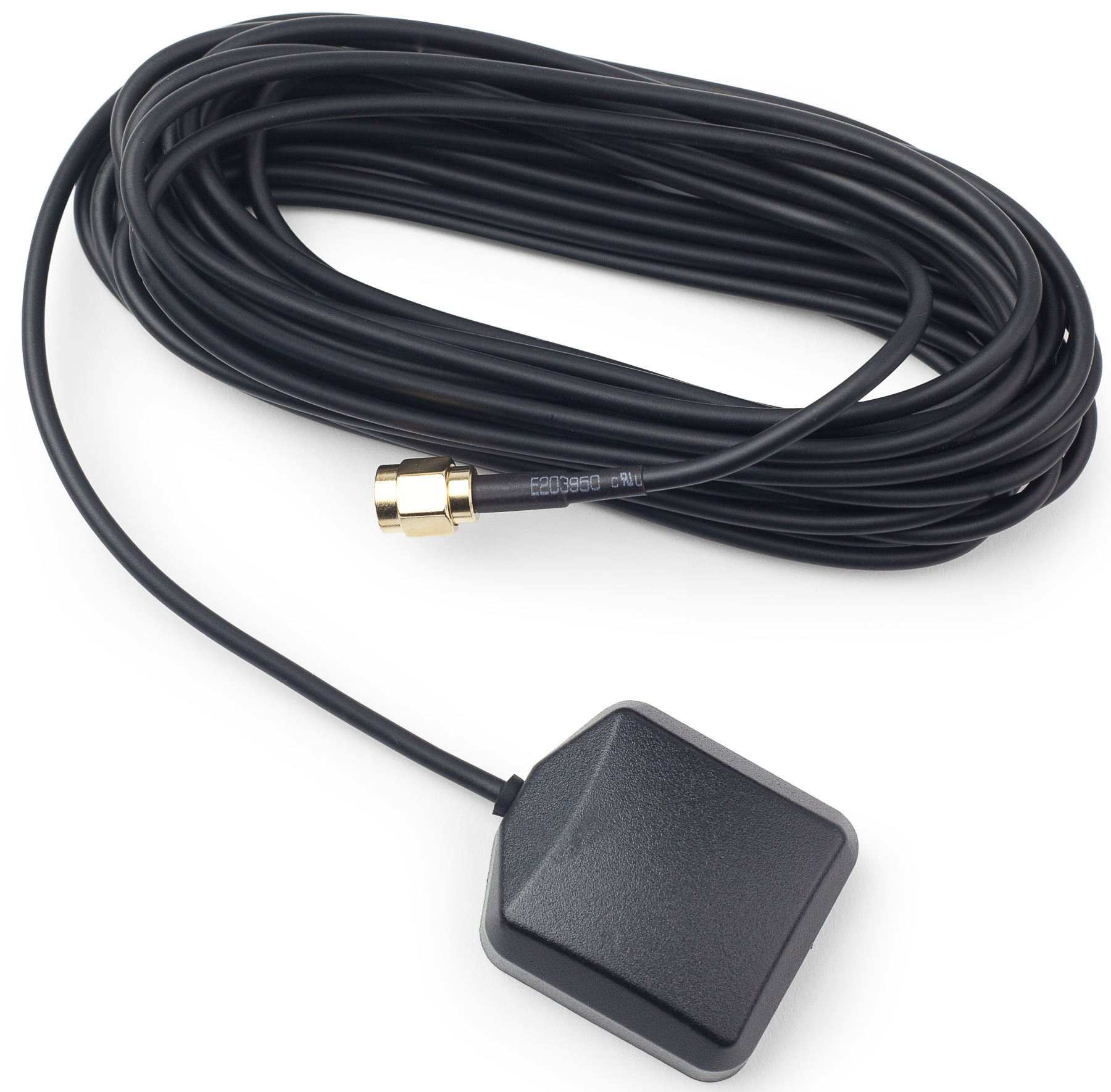

  GPS Antenna

Below is an example of the connections located on the side of the GPS300.

GPS300 Connections

Below is an example of the connections located on the side of the GPS350 and GPS360.

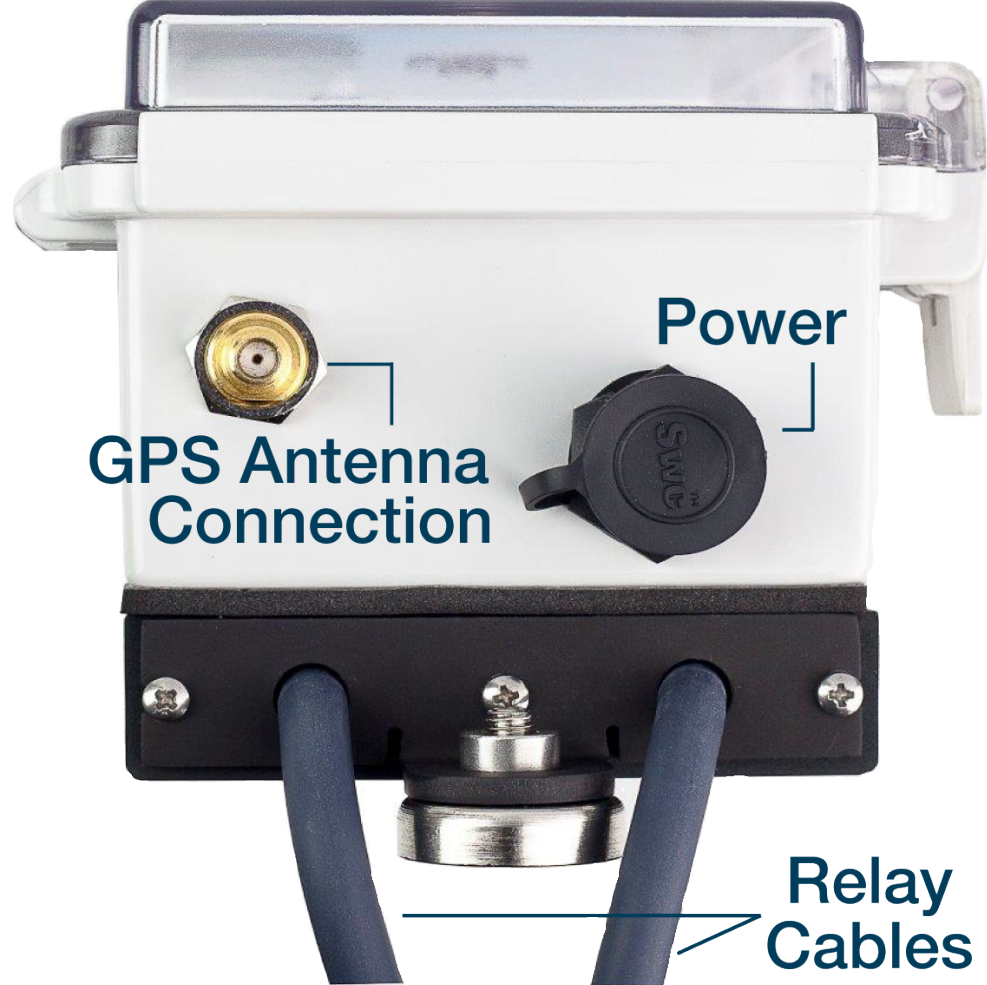

GPS350 and GPS360 Connections and Relay Cables
