RM4150 and RM4151 Unit Overview
The RM4150 and RM4151 are housed in a NEMA-rated weatherproof enclosure. They are designed primarily for cathodic protection applications and supports two-way communication with the Bullhorn Web website using the GSM cellular network. The units support an optional relay connection for GPS-synchronized current interruption.
The RM4150 supports two (2) configurable digital and five (5) configurable analog inputs with the following specifications:
-
Input ANALOG CH 1 through ANALOG CH 5 (channels 1 through 5) are isolated inputs that support analog ±150 V DC, 150 V AC, 4 - 20 mA with external resistor, or active digital input devices.
-
Input DIGITAL CH 1 and DIGITAL CH 2 are non-isolated inputs (0 - 24 V DC) that support digital dry contact closure and active digital input devices. DIGITAL CH 1 can also be used as a pulse count accumulator, and DIGITAL CH 2 can be used as an accumulator reset.
The RM4151 supports two (2) configurable digital and two (2) configurable analog inputs with the following specifications:
-
Input ANALOG CH 1 and ANALOG CH 2 (channels 1 and 2) are isolated inputs that support analog ±150 V DC, 150 V AC, 4 - 20 mA with external resistor, or active digital input devices.
-
Input DIGITAL CH 1 and DIGITAL CH 2 are non-isolated inputs (0 - 24 V DC) that support digital dry contact closure and active digital input devices. DIGITAL CH 1 can also be used as a pulse count accumulator, and DIGITAL CH 2 can be used as an accumulator reset.
RM4150 and RM4151 Unit Hardware Configuration
The backup battery is the only serviceable item in the RM4150 and RM4151.

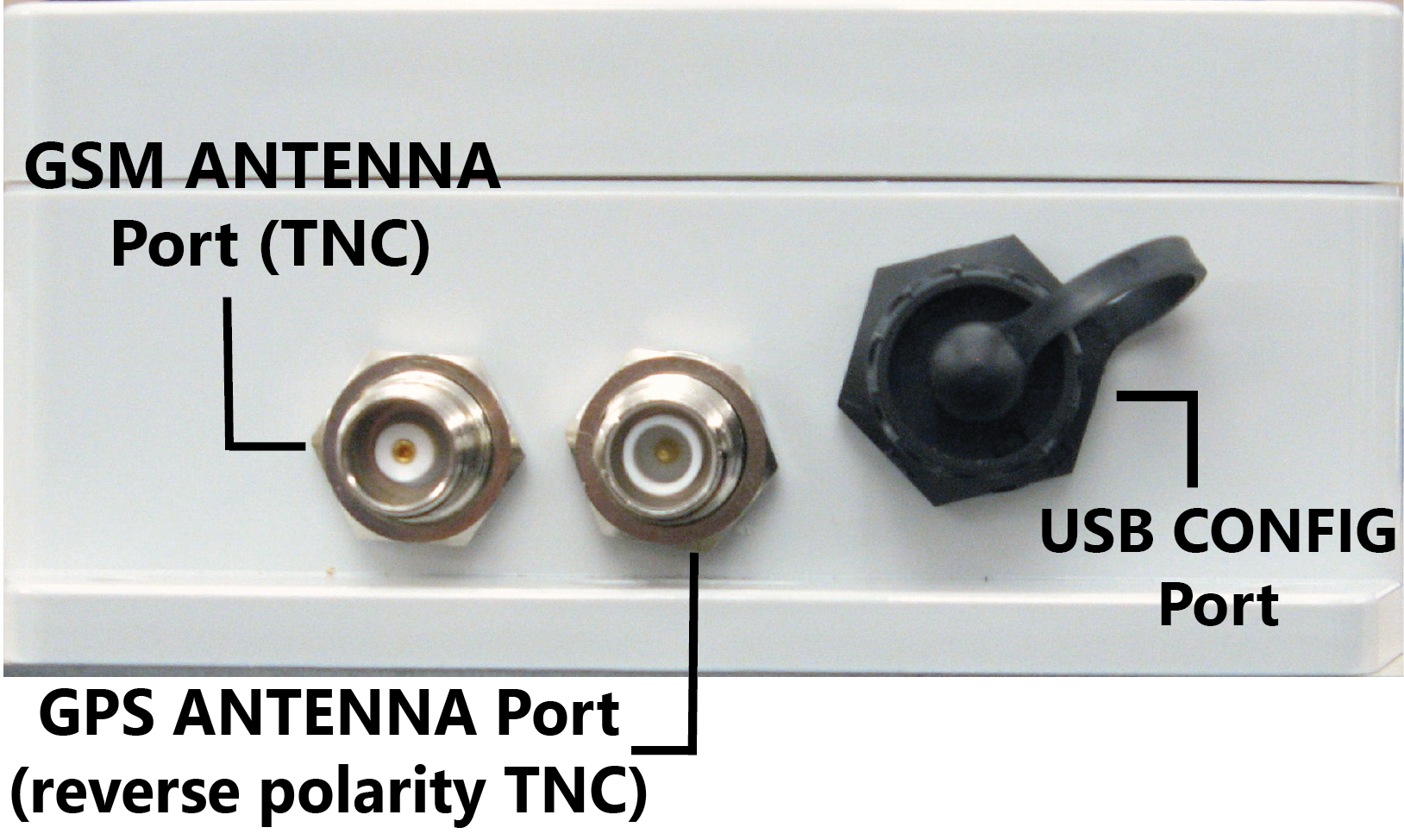

RM4150 and RM4151 Enclosure Connectors - Antenna and USB Config

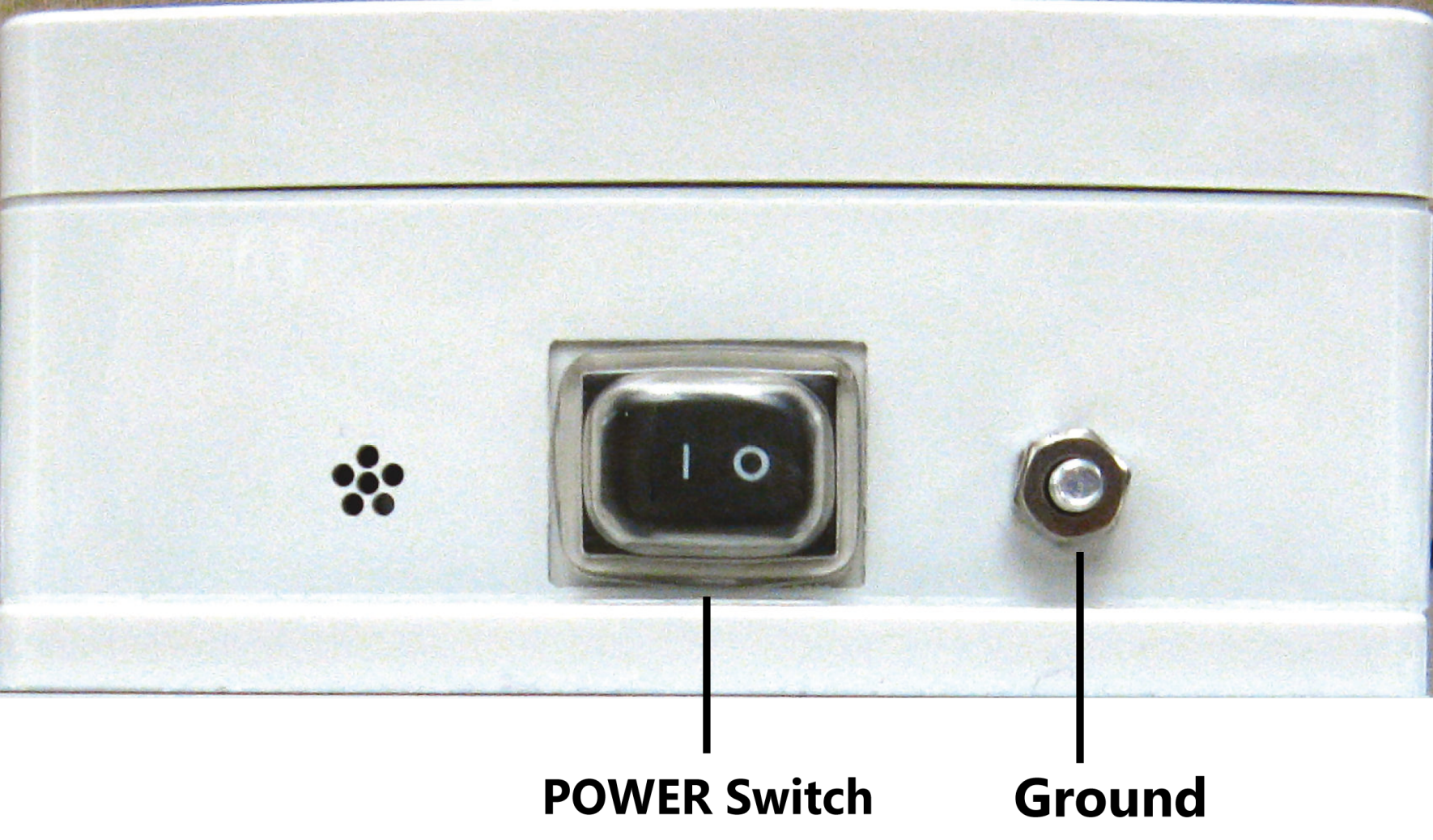

RM4150 and RM4151 Enclosure Connectors - Power and Ground
Because of the variations in customer's installation and grounding methods, AI cannot warranty any damage to equipment caused by lightning strikes.
