RM4013 and RM4016 Unit Overview

The RM4013 and RM4016 are housed in a NEMA-rated weatherproof enclosure and are primarily used in cathodic protection applications. The units use the SkyWave/ORBCOMM satellite network for data transmissions. The units include six (6) isolated input channels with the following specifications:

Active Digital is currently not supported.

  • Input channels 1, 3, and 4: support analog (±5VDC).

  • Input channel 2: supports analog (±100VDC).

  • Input channel 5 and 6: support digital. Channel 5 can also be used as an accumulator.

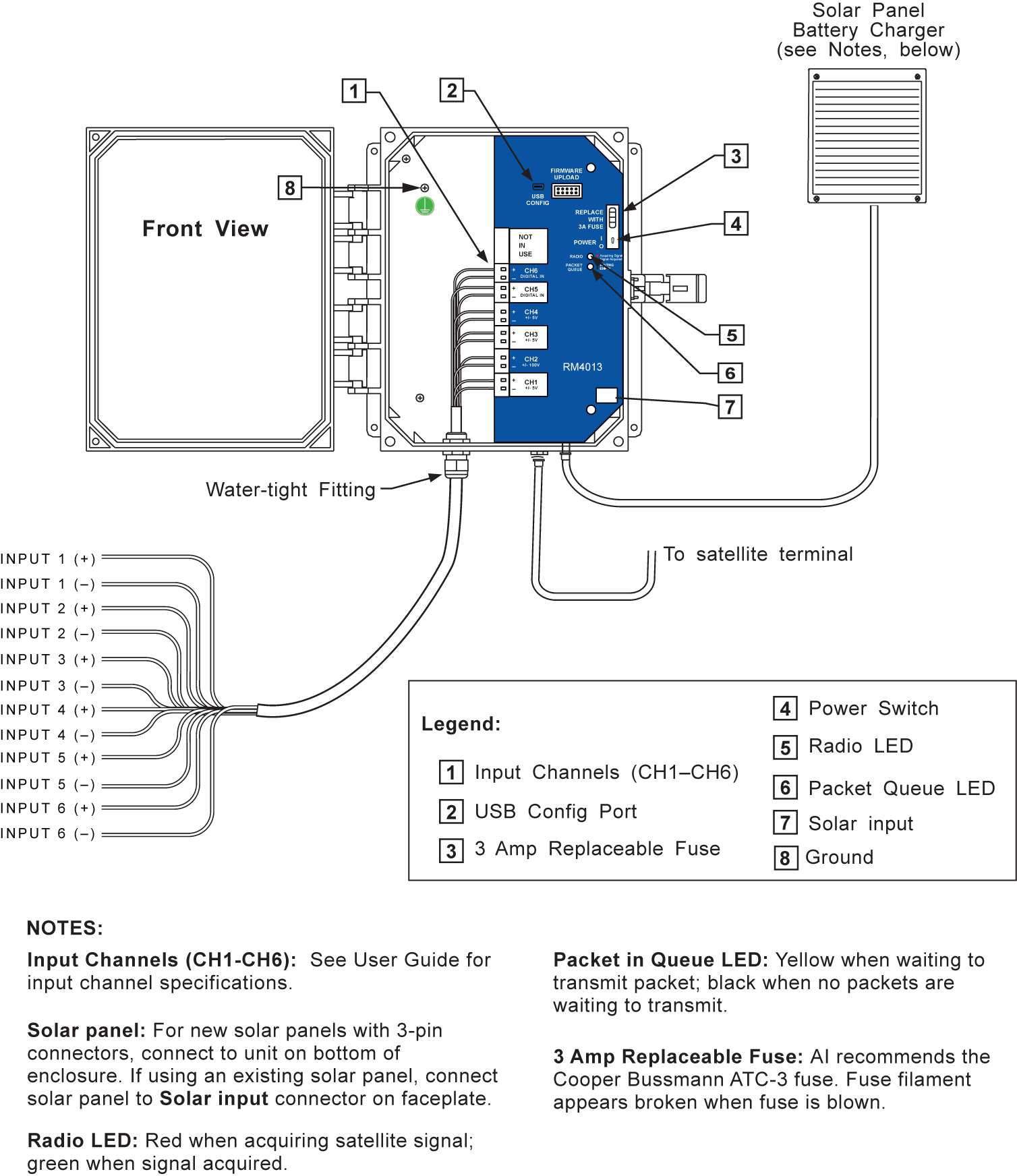

RM4013 and RM4016 Hardware Configuration

RM4013 and RM4016 Hardware Configuration

Because of the variations in customer's installation and grounding methods, AI cannot warranty any damage to equipment caused by lightning strikes.

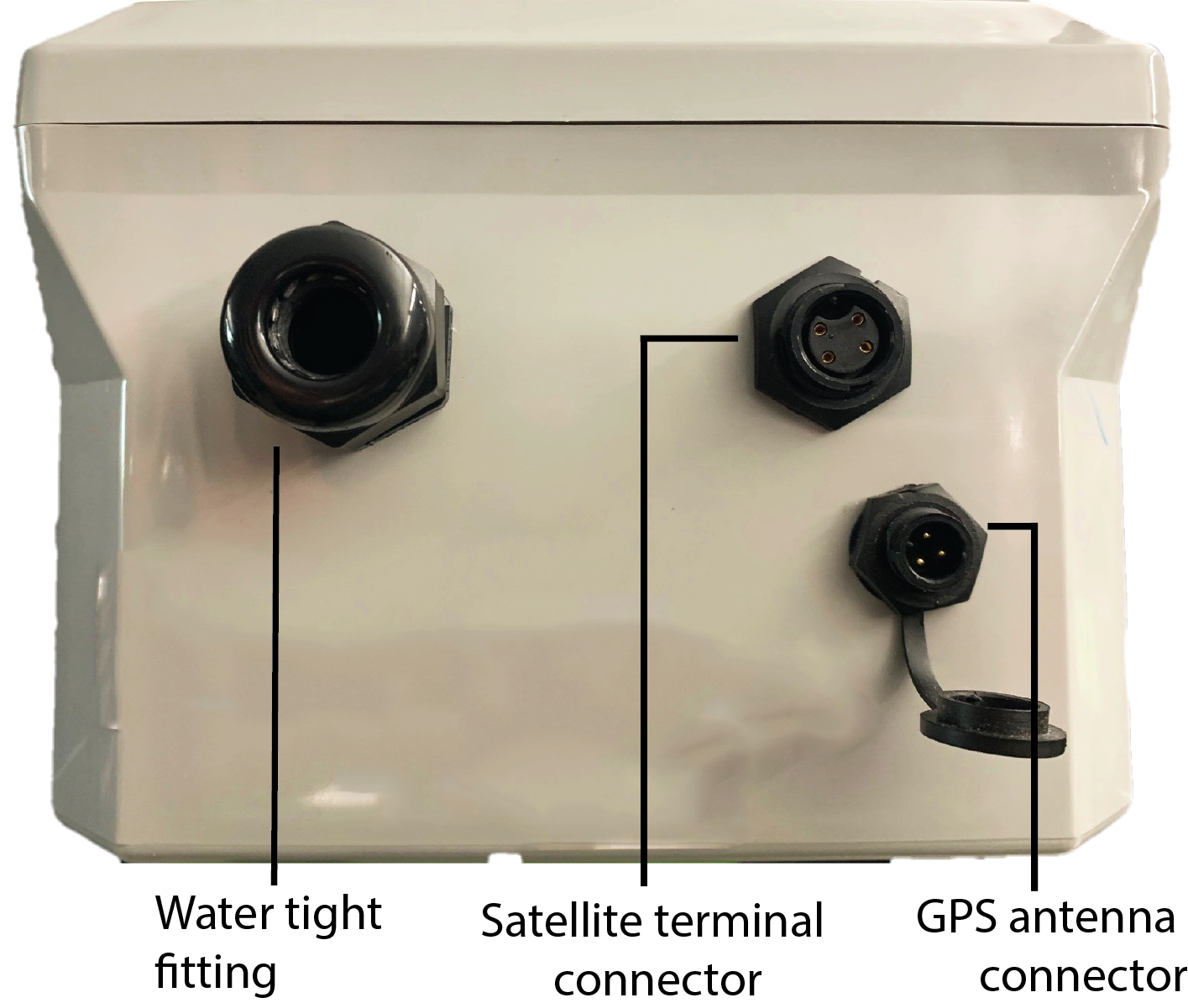

RM4013/RM4016 Enclosure Connectors (bottom)

RM4013 and RM4016 Enclosure Connectors (bottom)
