Mounting Requirements

You can mount the RM4013 or RM4016 enclosure anywhere with a few precautions. Information in this section identifies conditions to consider when choosing a location. Mounting hardware suitable for the type of mounting surface is provided by the customer.

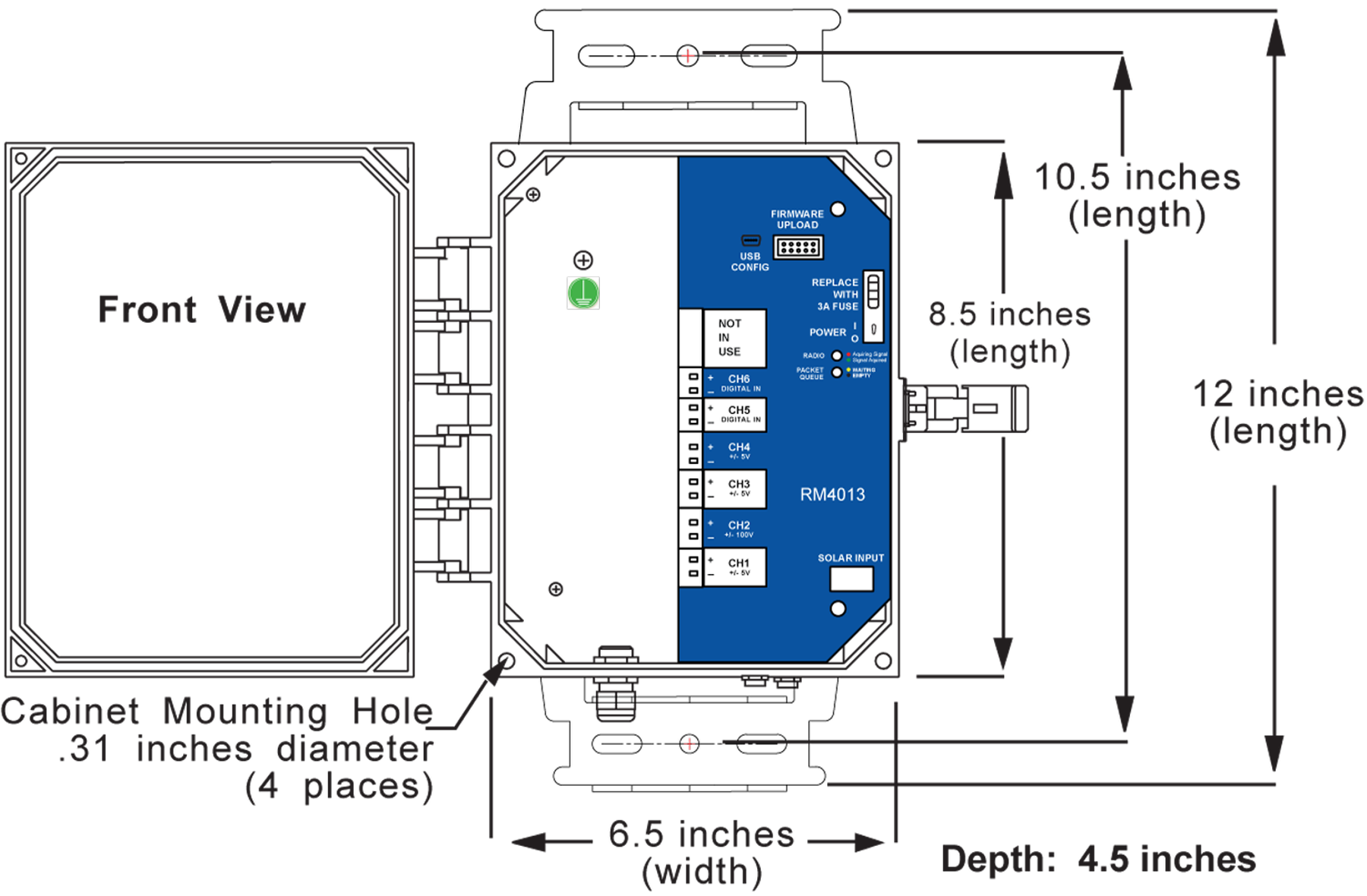

RM4013/RM4016 Enclosure Dimensions

RM4013 or RM4016 Enclosure Dimensions

Consider the following items when choosing a location to mount the enclosure:

Mount the enclosure in a clear, unobstructed area. The area should provide enough working space to easily open the enclosure when performing routine maintenance or configuring the unit for service.
The satellite terminal must be installed at least two (2) feet above the solar panel and face in the same direction as the nearest SkyWave/ORBCOMM GES.
