Instant Off

Complete the following steps to set instant off:

1. Click the next to Channel 3 to expand, if not already expanded.

2. Click Instant Off under the channel name. The Instant Off window displays.

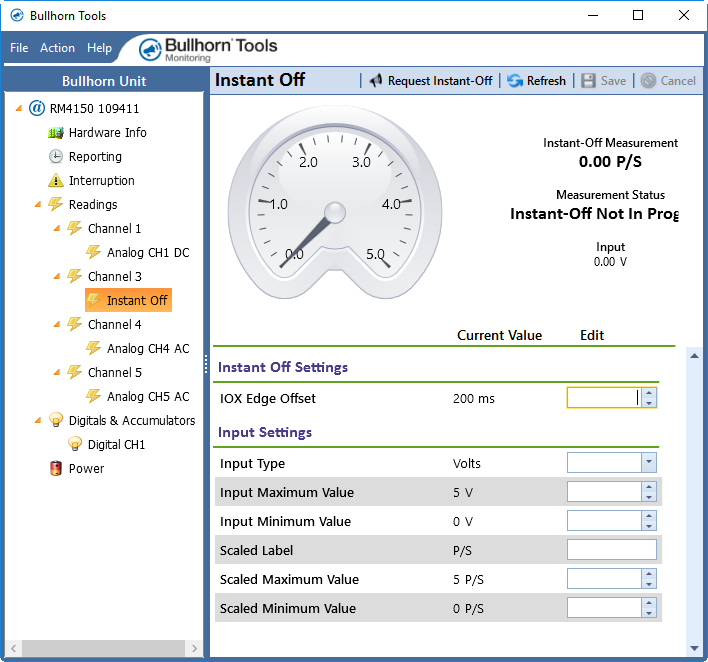

   Instant Off and Input Settings

3. Enter a value (in milliseconds) in the IOX Edge Offset field to set how long the unit will wait before taking a measurement after power from the rectifier has been turned off.

4. Select either Volts or Milli-Volts from the Input Type drop-down list.

5. Enter the maximum voltage value in Input Maximum Value field. You can also use the up and down arrows to change the value.

6. Enter the minimum voltage value in Input Minimum Value field. You can also use the up and down arrows to change the value.

   The Input Maximum Value must be greater than the Input Minimum Value.

7. Enter a label for the Scaled Label. The value you enter here will display in the Settings Preview area of the window, as well as the Unit Overview window, under the gauge (for DC enabled channels only). The value will also be used with Scaled Maximum Value and Scaled Minimum Value.

8. Enter the maximum scaled value in Scaled Maximum Value field. You can also use the up and down arrows to change the value.

9. Enter the minimum scaled value in Scaled Minimum Value field. You can also use the up and down arrows to change the value.

   The Scaled Maximum Value must be greater than the Scaled Minimum Value.

10. Click Save to save settings or Cancel to clear all fields.
