Mounting Requirements

You can mount the RM4010 , RM4014, and RM4014S enclosure anywhere, with a few precautions. The list below identifies conditions to consider when choosing a location. Mounting hardware is included with the enclosure.

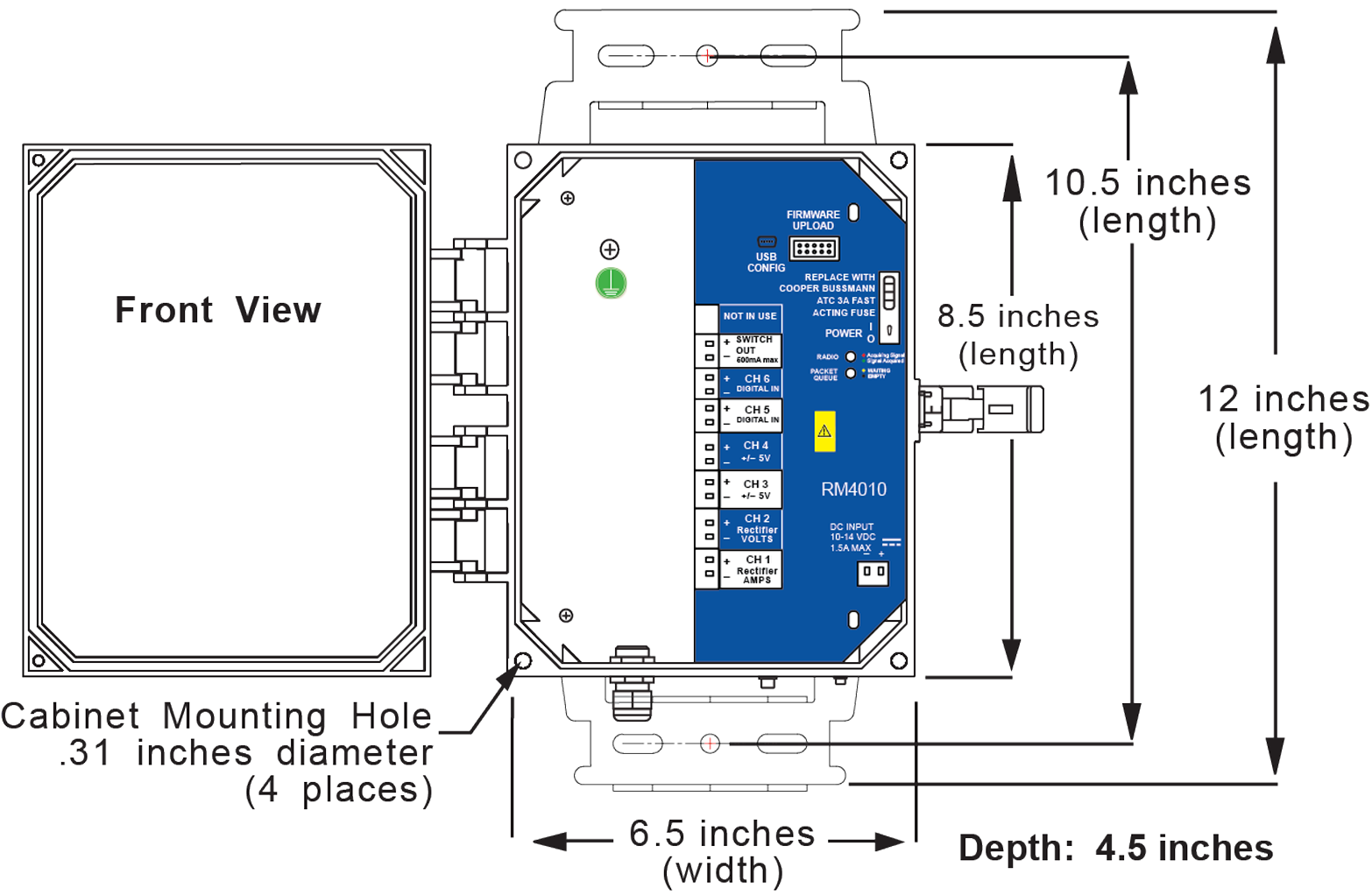

RM4010 , RM4014, and RM4014S Enclosure Dimensions

Consider the following items when choosing a location to mount the enclosure:

• Mount the enclosure in a clear, unobstructed area.

• The area should provide enough working space to easily open the enclosure when performing routine maintenance or configuring the RM4010, RM4014, or RM4014S for service.
