Connect Unit and Start UCT

Complete the following steps to connect the RM4020 and open the UCT:

1. Connect the configuration cable in the USB port of your computer. Connect the other end of the cable in the USB CONFIG port on the front panel of the unit.

2. Double-click the UCT program icon on the desktop to start the UCT software. Or click Start > Programs > Configuration Toolkit.

3. Select a unit in the drop-down list of the Find Devices and then click Select.



   Find Devices

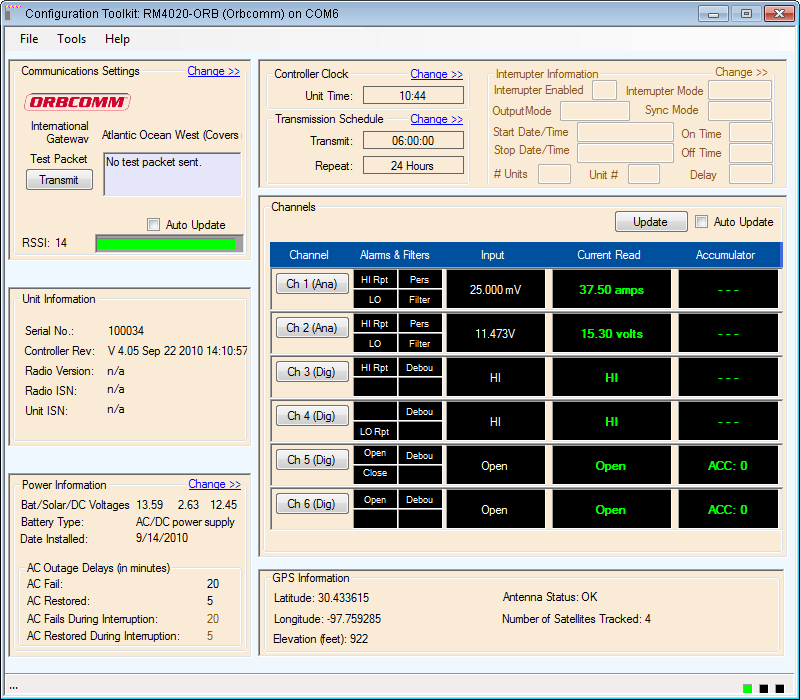

4. The main configuration window displays. Press F2 to read unit settings and verify the unit and UCT software are communicating.



   RM4020 Main Configuration Window
