Configure Alarm Measurement Interval

The Alarm Measurement Interval setting determines how often measurements are polled at the unit. AI recommends decreasing polling frequency to help mitigate surge events.

The Alarm Measurement Interval setting is only available for RM4010, RM4014, RM4014S, RM4011, and RM4015 units.

This field was added with the firmware v4.7 upgrade. If your unit has not been upgraded to firmware version 4.7 or later, this field will not be shown in the Reporting & Power window.

Complete the following steps to set the Alarm Measurement Interval:

  1. Click Reporting & Power to open the Reporting & Power window.

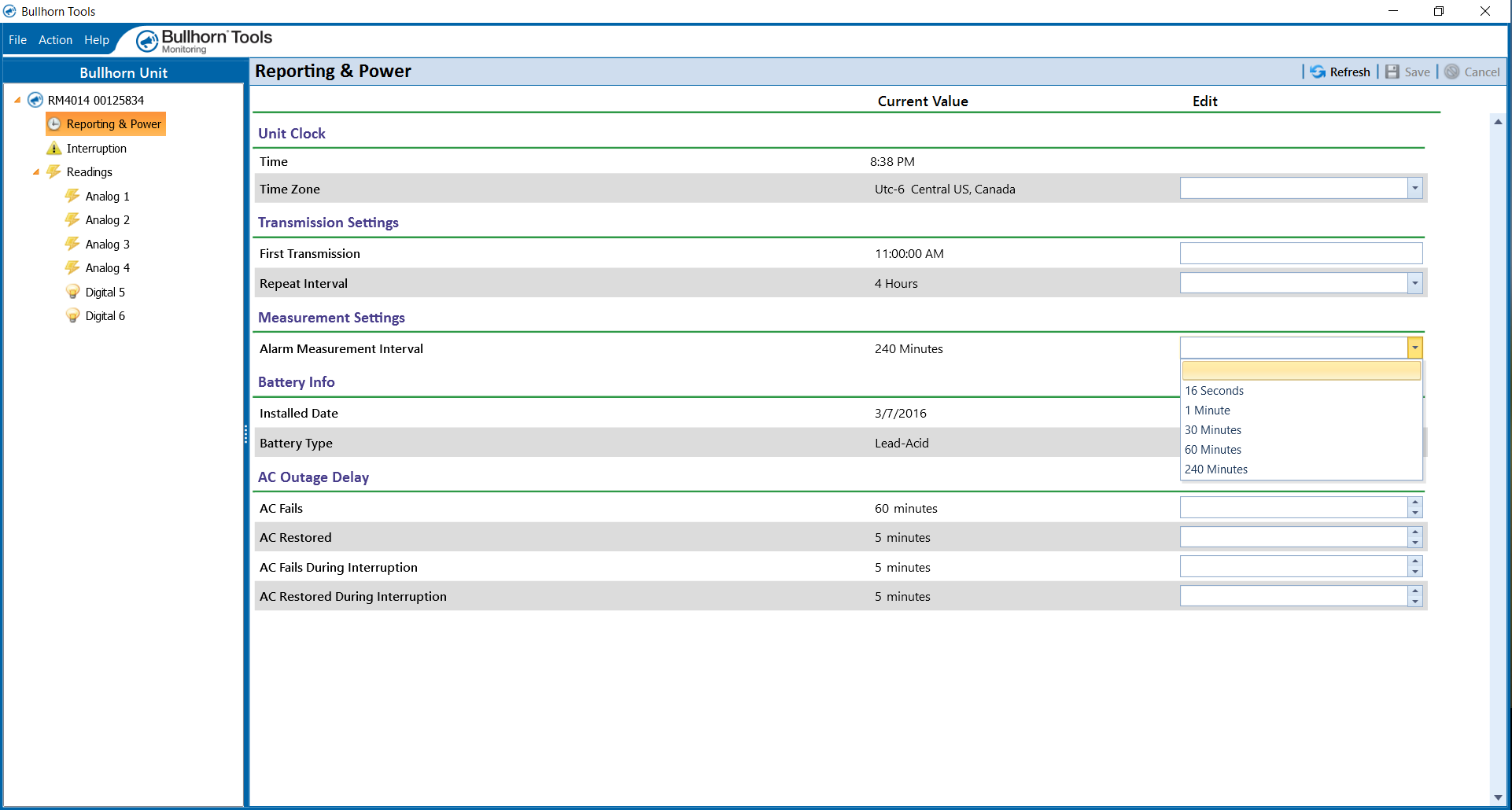

    Reporting & Power Settings - Alarm Measurement Interval

    Reporting & Power Settings - Alarm Measurement Interval

  2. Select a time interval from the Alarm Measurement Interval field. The default is 240 minutes.

  3. Click Save to save settings or Cancel to reset all fields.
