Verifying Satellite Signal Strength

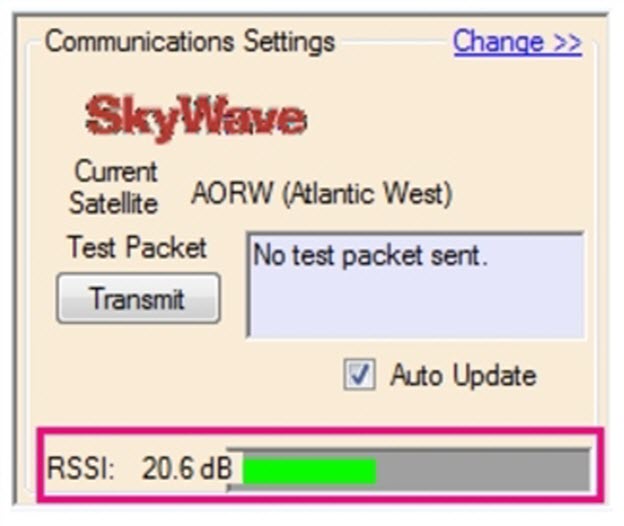

The signal strength of the SkyWave satellite for the RM3011 can be viewed in the Communications Settings box on the main configuration window.

Satellite Signal Strength

Satellite Signal Strength

The satellite signal strength is displayed in the RSSI field. The RM3011 uses an RSSI scale of 0.00dB to 50.00dB. If the signal strength is weak (less than 10.5 dB for more than 30 seconds), a pop-up message will display to notify the user. The pop-up window also includes a Satellite Wizard tool to help acquire a stronger signal.

Use the following information to verify that the RM3011 is receiving a strong satellite signal:

  • Click Auto Update to display latest "live" RSSI reading.

  • An RSSI of 14dB or higher indicates a strong signal.

  • Levels below 14dB indicate no satellite communication.

  • A green status bar in the RSSI field indicates that satellites have been found.

  • A red status bar in the RSSI field indicates that no satellites have been found.

If the RSSI signal is below 14dB or if the status bar is red, adjust the RM3011 enclosure and recheck the satellite signal strength.
