RM1250 with Index

The RM1250 can be ordered with an index. The assembly can be easily installed or mounted to a meter or other structure. The dimensions of the complete assembly are shown below.

RM1250 with Flat Base and Index Dimensions

Complete the following steps to connect the RM1250 to the flat base and index assembly:

1. Connect the 4-pin connector from the index adapter to the RM1250.

2. Connect the two RM1250 battery connectors to the corresponding connections (marked Battery), as shown.

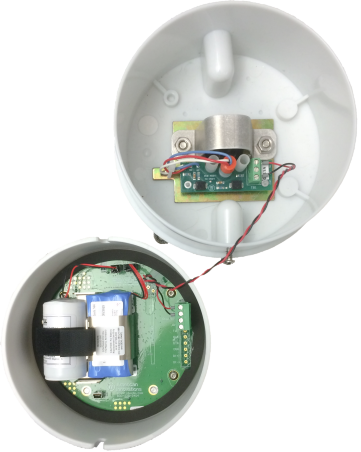

   RM1250 and Index

3. Place the RM1250 onto the flatbase/index assembly. Ensure that the connection wire is fully enclosed in the unit assembly.

   The RM1250 label should be facing forward and line up with the blue dot on the base.

4. Tighten base screws to secure unit.
