RM1250 Unit Overview

The RM1250 is housed in a weatherproof enclosure that can be easily installed and configured. The unit can be installed separately from an index or meter, attached to an existing index, or shipped with an index attached. The RM1250 is designed primarily for metering applications and supports two-way communication with Bullhorn Web through a GSM cellular network.

RM4210 Installed on Test Station

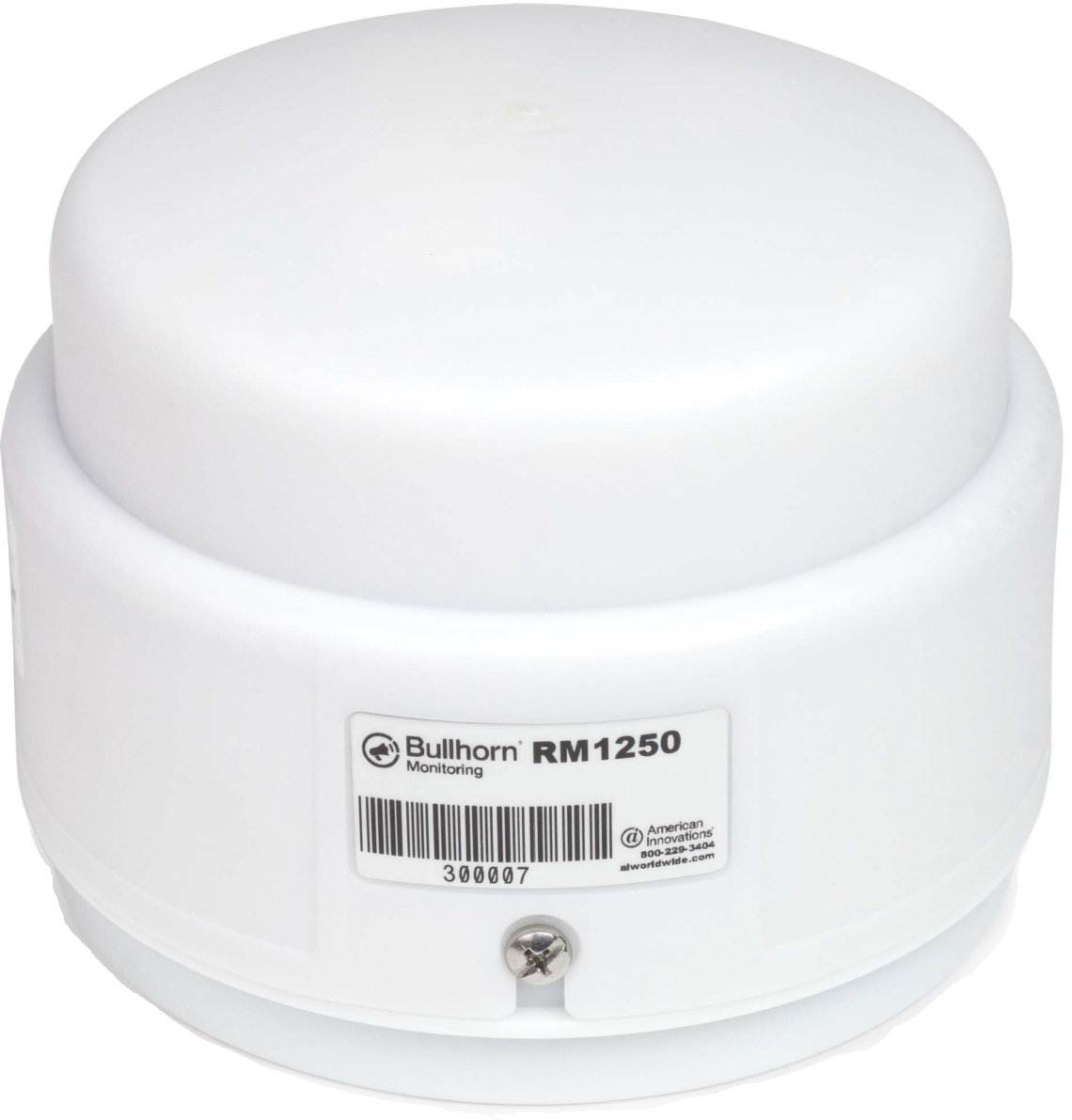

RM1250

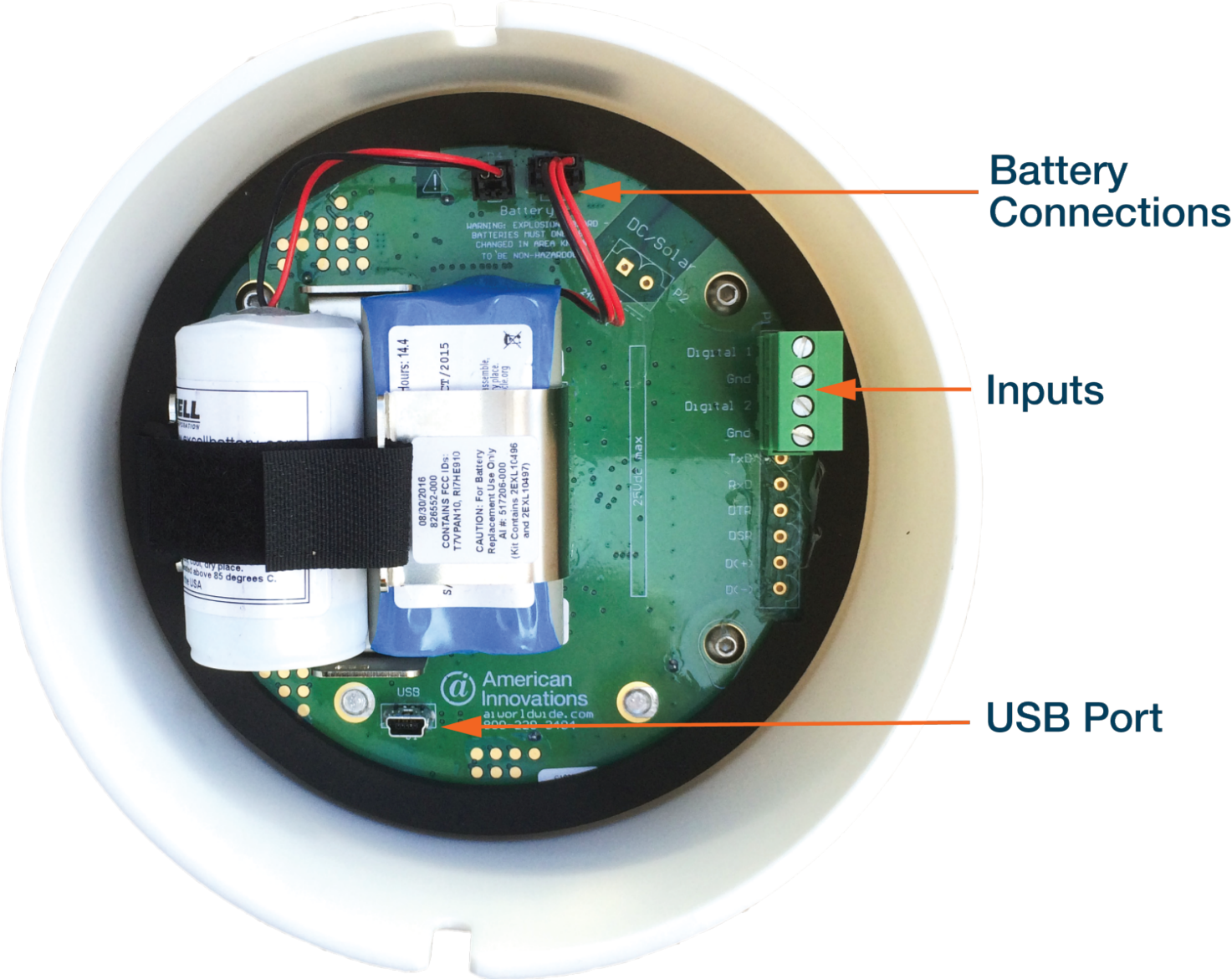

The input connections and battery placement for the RM1250:

RM1250 Inputs

RM1250 Inputs

The RM1250 includes the following inputs:

  • Accumulator 1

  • Digital Input 1

  • Accumulator 2

  • Digital Input 2

The battery is the only field-serviceable item in the RM1250.

After installation, the RM1250 can be configured with the Bullhorn Tools configuration software on a laptop or with the mobile application on a smartphone or tablet. Bullhorn Tools can display readings, set up transmission schedules, set alarms, send a test message, or send an email to Technical Services. Refer to RM1250 Configuration for more information on using Bullhorn Tools to configure the unit for service.

Because of the variations in customer's installation and grounding methods, AI cannot warranty any damage to equipment caused by lightning strikes.
