Triton Test Station with a Triton Coupon

If you are connecting the RM4210 to a Triton test station and Triton coupon, connect the RM4210 wiring harness phoenix connector to the RM4210. Then connect the harness wires to the test station where the matching colored wires from the coupon are connected to the test station. Refer to the following wiring diagram for wiring configuration.

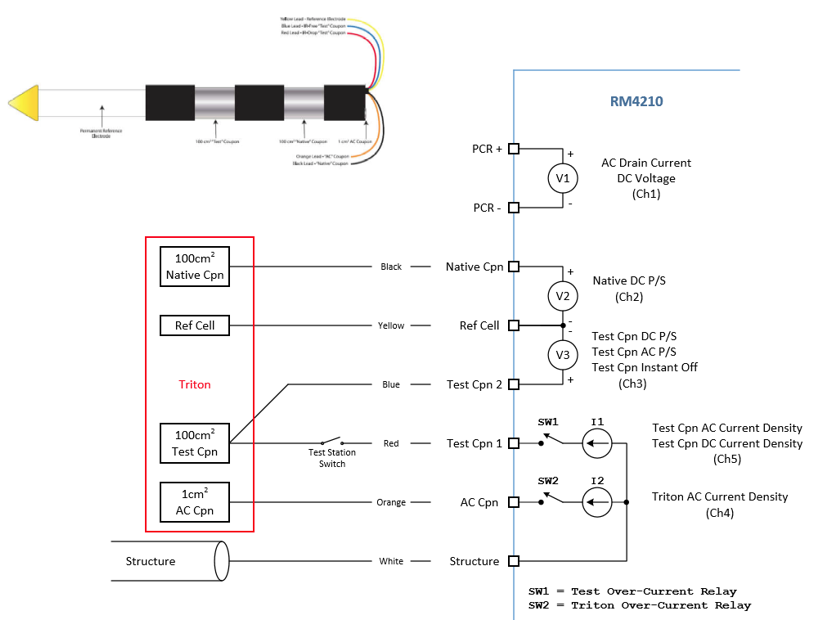

Wiring Diagram - Triton Coupon
