CP-protected Coupon (AC Coupon) for AC Current Density Measurements

  1. Connect the orange AC Cpn wire from the RM4210/RM4250 wiring harness to the point on the test station that is connected to the CP-protected (AC coupon).

  2. Make a note of the size of the CP-protected (AC coupon). This data will be entered in Bullhorn Web:

    1. Go to the Unit Setup page for the unit.

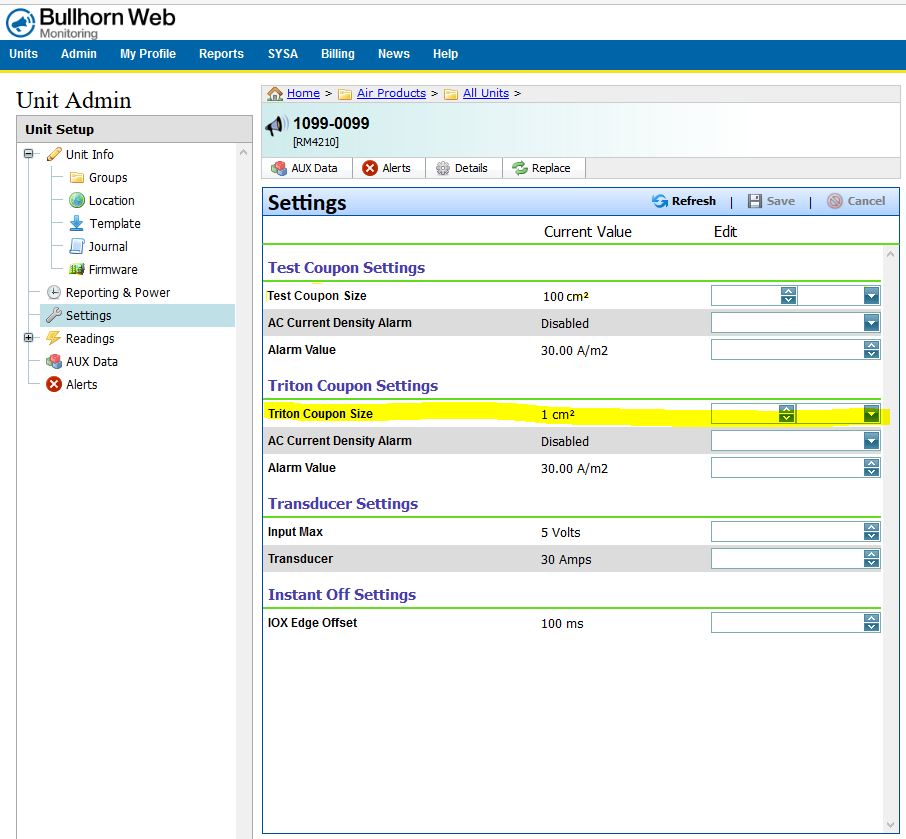

    2. Under Settings, enter the CP-protected (AC coupon) size in the Triton Coupon Size field.

Unit Setup for Second of Two Coupons (Triton Coupon)

Remove any switch or jumper on the test station head that is used to connect the CP-protected coupon (AC Coupon or Test Coupon) to the Structure, where the CP-protected coupon is used to measure AC current density or instant off.
