RM510C/RM510S Digital Channel Settings

Digital channel settings are also accessible from the Channel Settings menu.

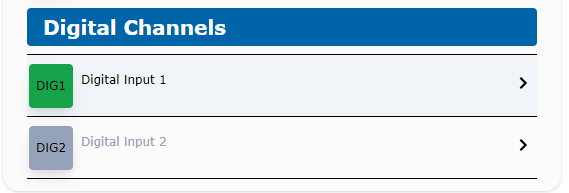

Digital Channel Settings

Click the square next to the channel name to enable or disable that channel.

Click on the channel name to access the Channel Settings menu. The Channel Settings menu allows the channel name, display settings, and alarm settings to be configured.

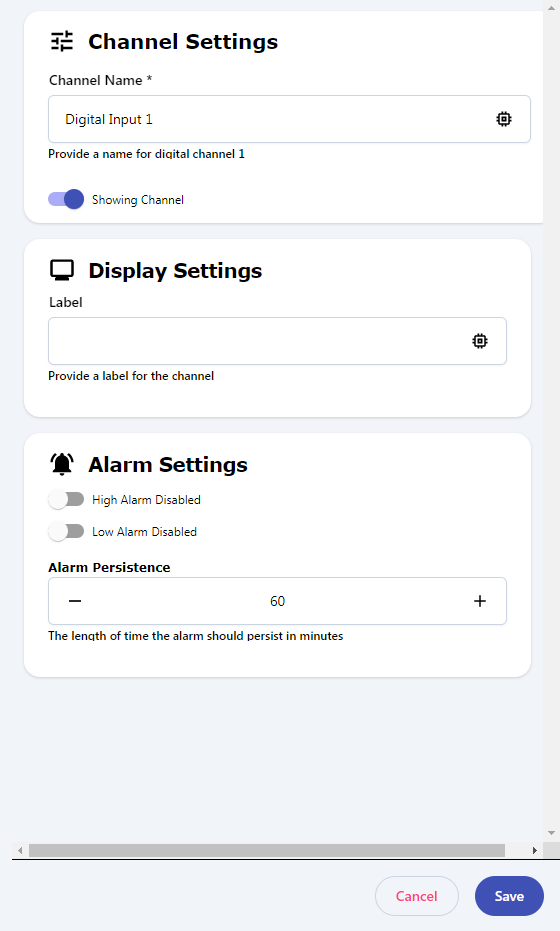

Digital Channel Settings Detail Pane

Alarm Settings – High and low alarms can be set on an individual channel to immediately send in a notification if a threshold is crossed. The alarm persistence setting determines how many minutes the alarm condition must be set for before sending in a packet.

Display Settings – This section specifies the engineering units. Clicking on the Engineering Units field opens a drop-down menu with typical engineering unit names found in PCS. Selecting a prepopulated unit label will help prevent errors while bridging data.
