RM3250 Register Display Settings Fields

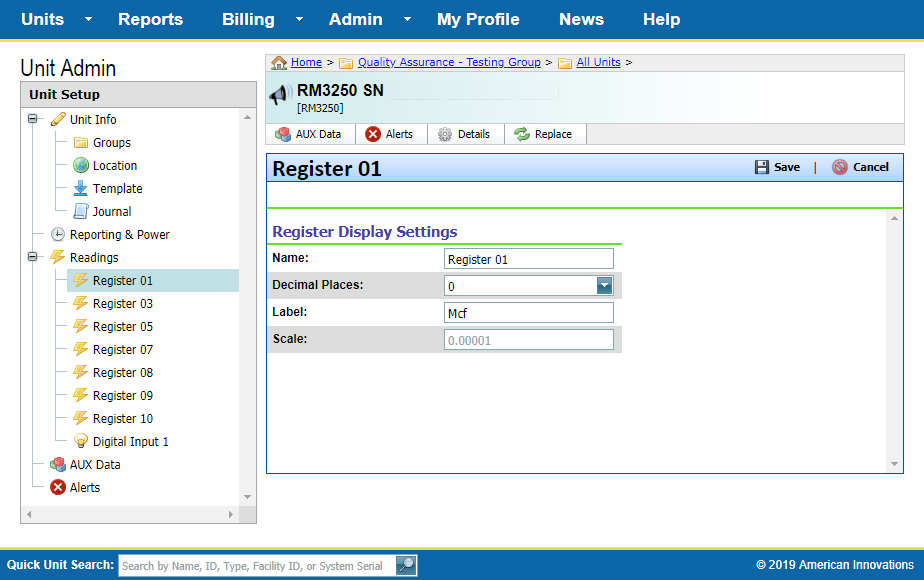

To view Register Display Settings, click a register name under the Readings link in the Unit Setup pane.

Register Display Settings include the following fields:

RM3250 Digital and Alarm Settings

• Name — User-defined name for the register.

• Decimal Places — The number of digits that will be displayed to the right of the decimal of the input's value.

• Label — User-defined unit of measurement for the reading. This label is related to where the reading is coming from and may include numbers or an identifier, such as Station Number.

• Scale — For scaling the input value.
