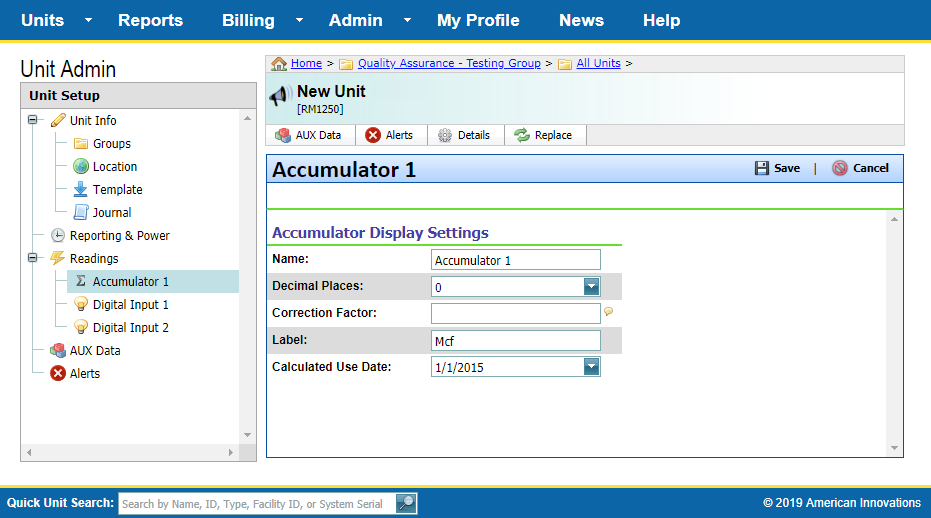

RM1250 Accumulator Readings Fields

Accumulator display settings include the following fields:

RM1250 Accumulator Data Point Settings

• Name — A name for the input that will display in the navigation panel.

• Decimal Places — The number of digits that will be displayed to the right of the decimal of the input's value.

• Correction Factor — A decimal number that will be multiplied by the input's value. Cannot equal zero. Leave blank to have no correction factor.

• Label — A unit of measurement for the value.

• Calculated Use Date — This date will be used as the starting point for generated reports.
