DVM Terminal Insert

In response to customer feedback regarding a problem with the DVM terminals, American Innovations has developed a terminal insert that can be used with non-shielded banana jacks. The terminal insert can be used to prevent angular torque that may occur when using non-shielded banana jacks.

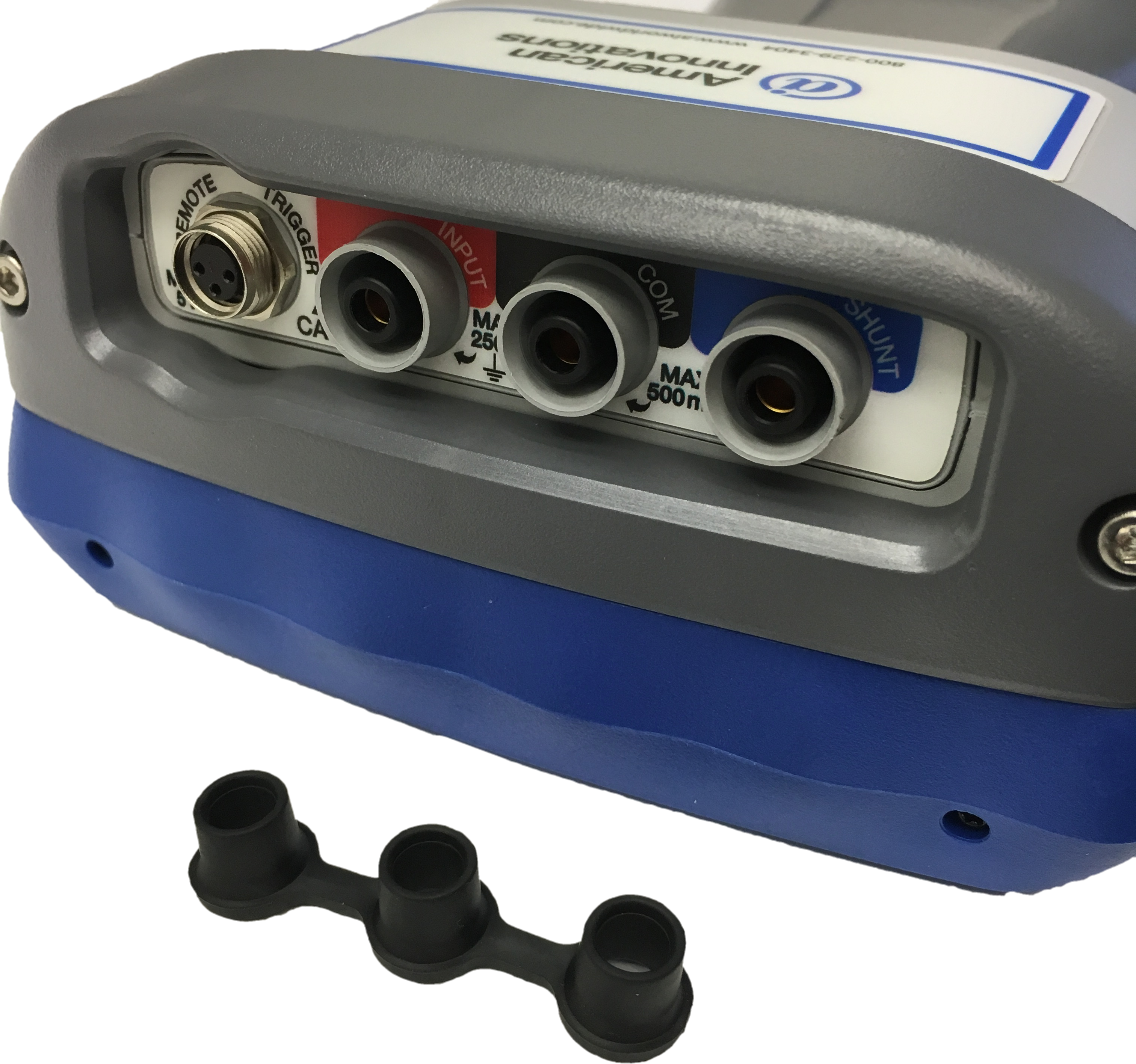

DVM Terminal Insert

The insert is placed in the INPUT, COM, and SHUNT terminals on your DVM. After the insert has been installed, use banana jacks in the usual manner.

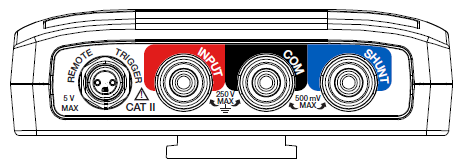

INPUT, COM, and SHUNT Terminals

If you have any questions or need further assistance, give us a call at 510-288-6196 or email us at support@aiworldwide.com.
