Connect Microsensys RFID Reader to iOS Device

The Microsensys RFID reader will need to be configured to use with mobile devices running the iOS operating system. The RFID reader must be configured to run in SPC mode from the configuration tool provided by Microsensys.

Microsensys has also developed a script that must be run with the configuration tool to complete the connection process.

Both the Microsensys Configuration Tool and the script are available from the Survey Accessory Downloads page. Before beginning the steps described below, be sure to download the microsensys.zip file, which includes both the configuration tool and script. Be sure to extract the .zip file to open both files.

The Microsensys RFID Reader Quick Reference Guide is also available on the Downloads page for additional reference.

Complete the following steps to configure a Microsensys RFID reader for use with an iOS mobile device:

  1. Install the Microsensys iID Interface Config Tool on your PC.

  2. Connect the Microsensys RFID reader via USB to the PC.

  3. Launch the iID Interface Configuration Tool.

    iID Interface Config Tool Main Window

    iID Interface Config Tool Main Window

  4. Click the Bluetooth button.

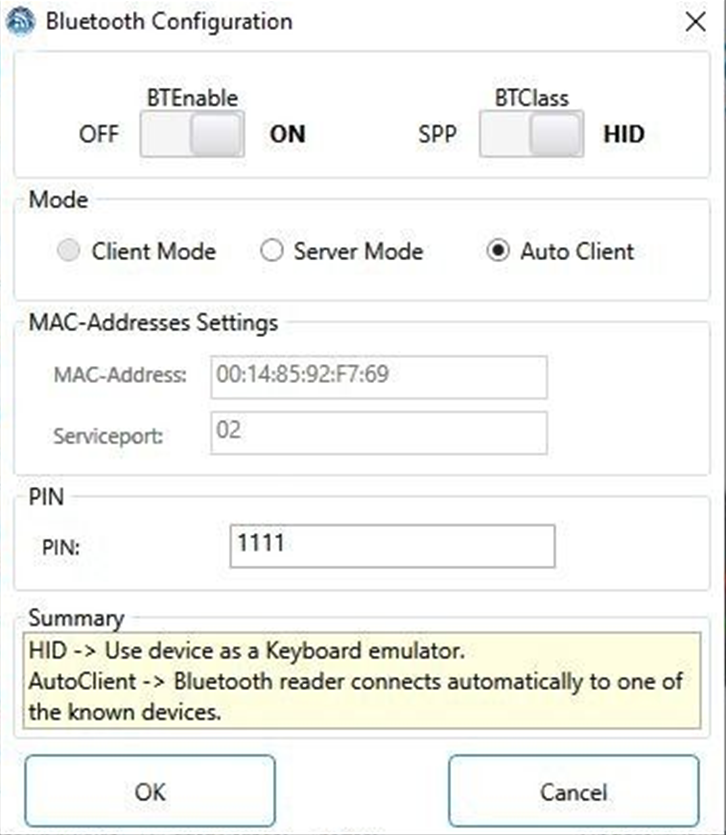

    Bluetooth Configuration Window

    Bluetooth Configuration Window

  5. Ensure that the BTEnable toggle is set to ON.

  6. Set the BTClass toggle to HID.

  7. Under Mode, select Auto Client radio button.

  8. Click OK. The main configuration window opens.

    Interface Config Tool

    Interface Config Tool

  9. Click Script. The Script Configuration window opens.

    Script Configuration Window

    Script Configuration Window

  10. Click Open File. A Script Selection window opens.

    Script Selection Window

    Script Selection Window

  11. Click the button to browse to the script file on the PC. Select the script. The script will display in the text box.

    Script Path - Script Loaded

    Script Selection Window

  12. Click OK. The Script Configuration window opens.

    Script Configuration Window - Script Loaded

    Script Configuration Window - Script Loaded

  13. Ensure that the SPC radio button is selected.

  14. Click OK.

  15. Unplug the USB cable from the Microsensys RFID reader.

  16. Pair the mobile device to the Microsensys RFID reader. The RFID reader will be listed as iID PENsolid ####, where the number shown is the reader's serial number. Look for the serial number (SN:#######) on the back of the reader to help identify it in the list.

    Microsensys RFID Reader Back With Serial Number (SN)

    Microsensys RFID Reader Back With Serial Number (SN)

    PCS FDC RFID Icon

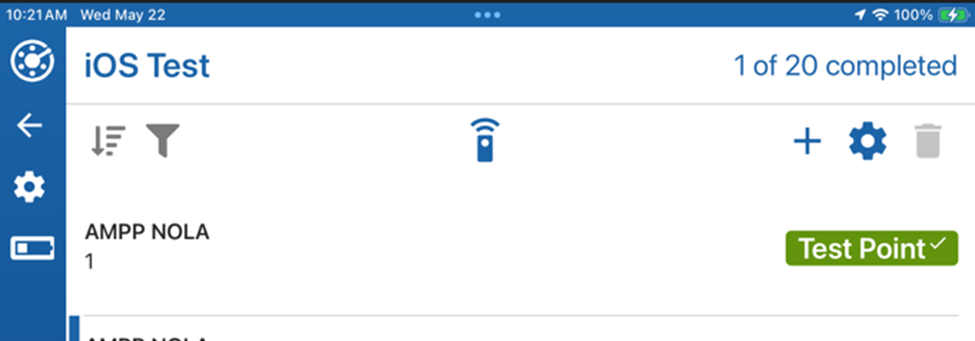

  17. Tap the RFID icon at the top of the FDC screen. This will put Periodic Survey in Scan Mode.

  18. Press the Scan button on the Microsensys RFID reader and place it against and RFID tag. The tag number will be transmitted to the mobile device.
