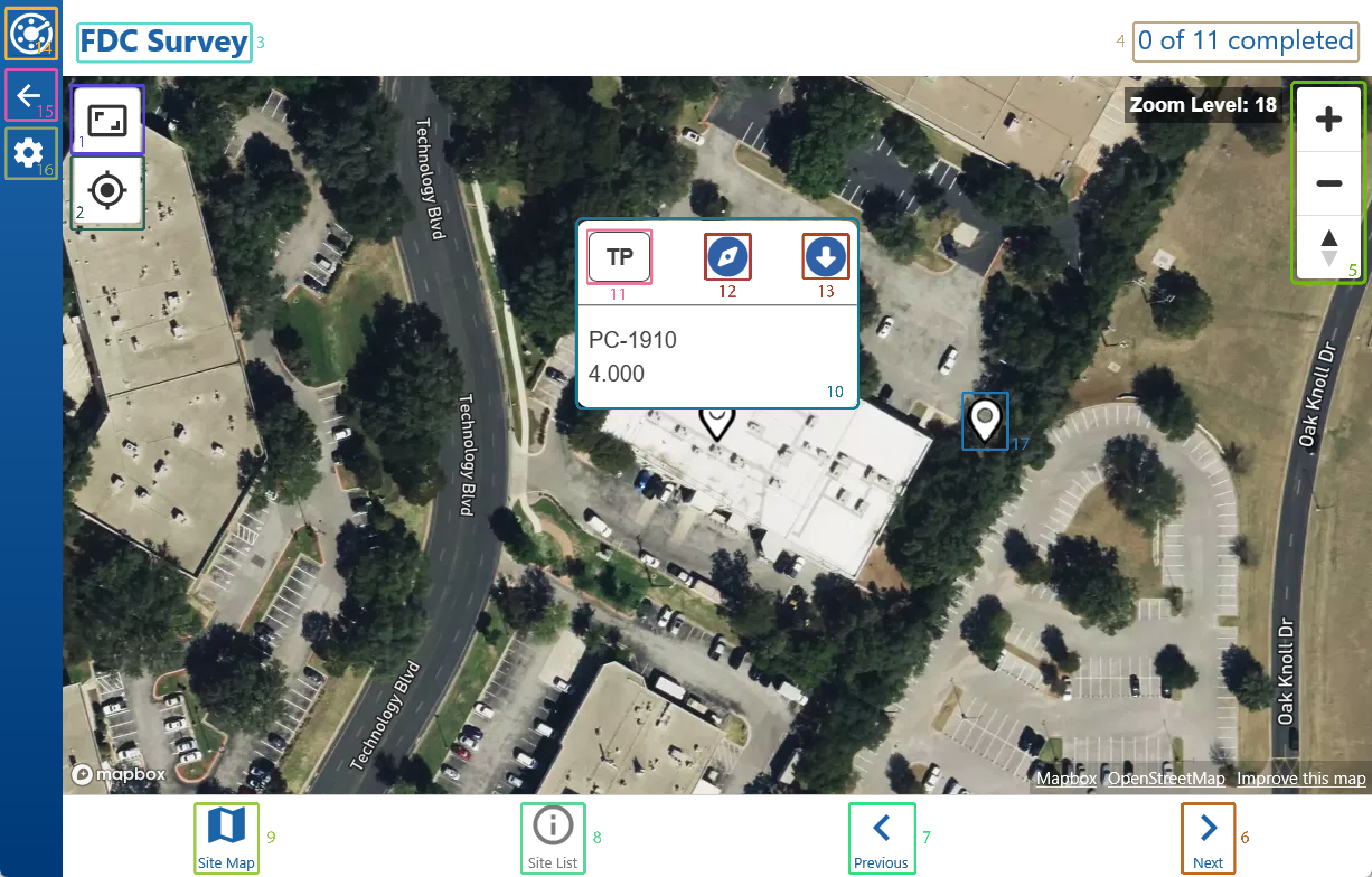

PCS Field Data Collector Periodic Survey Map Screen
Legend and user interface elements of the PCS Field Data Collector map view:
| UI Item | Icon | Name |
|---|---|---|
| 1 |
|
Zoom to Extent |
| 2 |
|
Current Location |
| 3 |
|
Survey Name |
| 4 |
|
Survey Status |
| 5 |
|
Zoom control and Return to North |
| 6 |
|
Next Site |
| 7 |
|
Previous Site |
| 8 |
|
Site List |
| 9 |
|
Site Map |
| 10 |
|
Site Card |
| 11 |
|
Facility Type |
| 12 |
|
Bearing & Distance |
| 13 |
|
Open Site Inspection |
| 14 |
|
FDC Home Button |
| 15 |
|
Back Button |
| 16 |
|
FDC Settings |
| 17 |
|
Site Pin |
|
|
Site Pin - Unvisited site | |
|
Site Pin - Incomplete site | |
|
Site Pin - Completed site |
