Connect Test Leads to DVM

Periodic Survey records facility inspection readings using the digital voltmeter (DVM) and a data cane connected to the red and black jacks on the DVM. Plug test leads to the red and black jacks on the DVM according to the diagram.

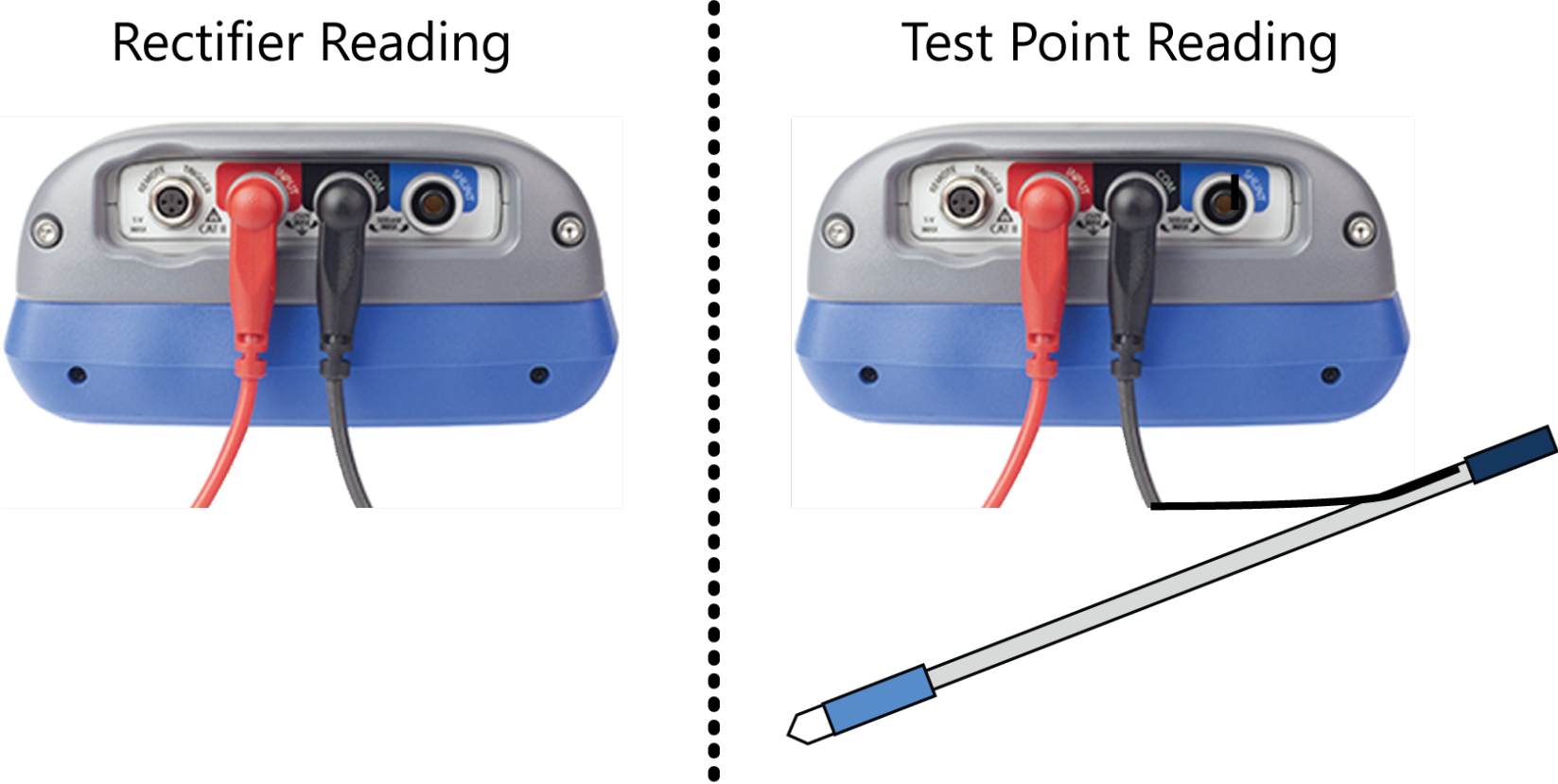

The following graphic shows connections to the Allegro AX. The connections are the same for the Mesa 3.

Connections Configuration for Periodic Survey - Test Point and Rectifier
