Flagged Surveys Using One Data Cane
For Flagged surveys using only one data cane as a trigger, plug one connector to the Remote Trigger connection on the DVM.

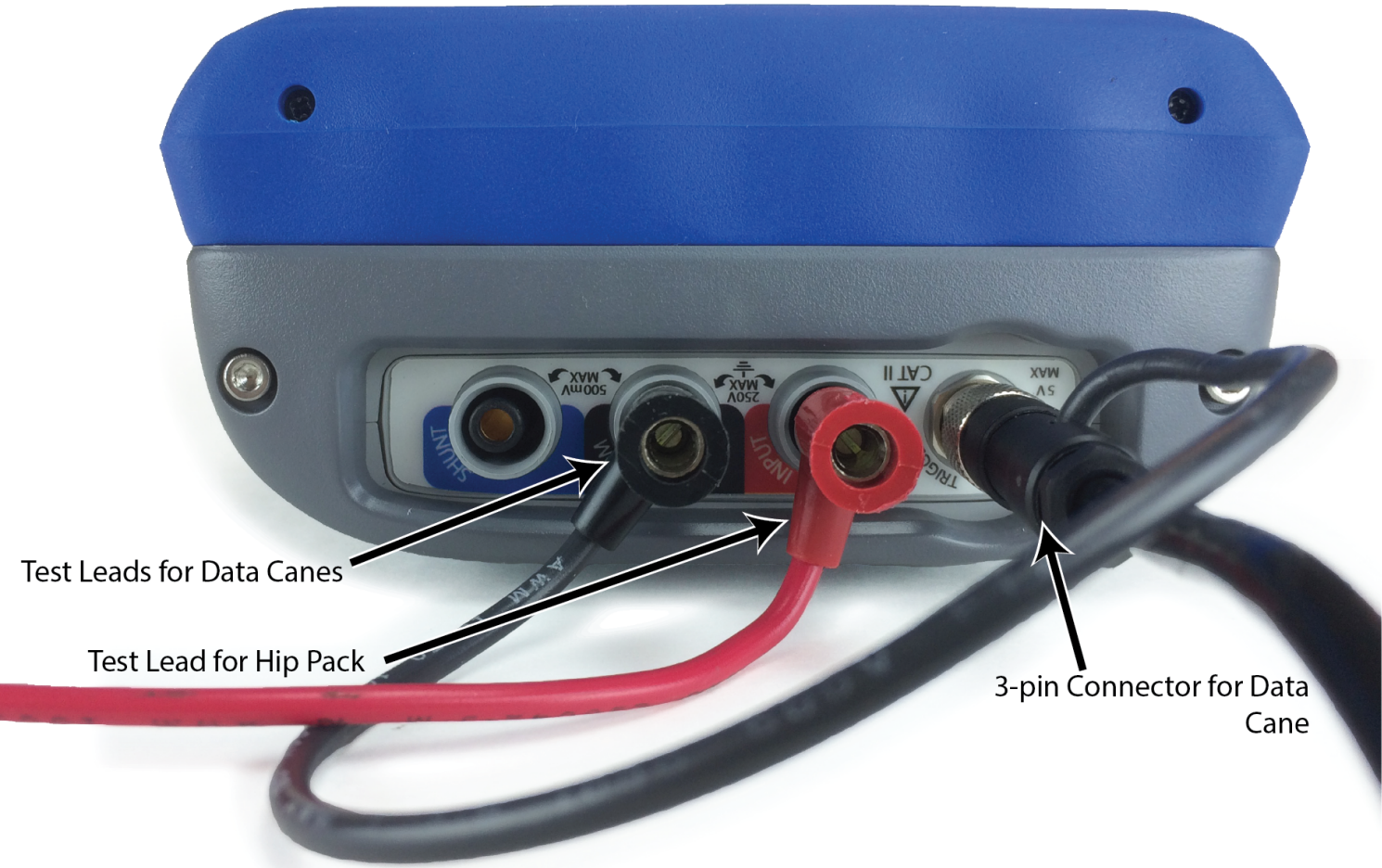

Allegro AX Connected to One Data Cane
The DVM2130 (used with the Mesa 3 and iOS devices) has the same connections as those on the Allegro AX DVM and can be connected in the same manner as the graphic.
