Show Bearing to Site

When viewing a single record with GPS coordinates, double-tap the GPS field to display the Site Locator window. Tapping View > Show bearing to site also displays the window.

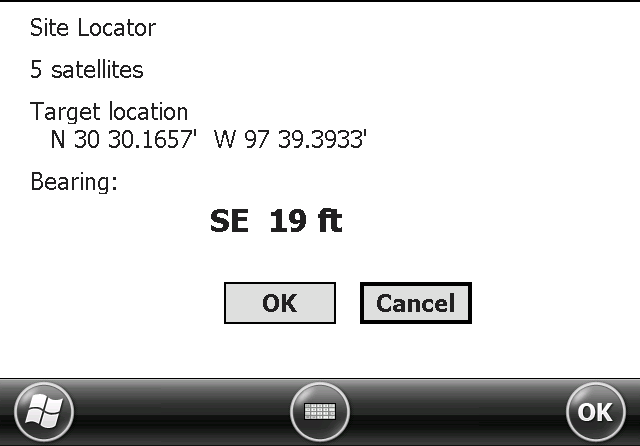

The Site Locator window shows bearing and distance to a target location. Bearing is blank when the Allegro MX is not receiving a valid GPS fix. The message Out of Range displays when the following conditions occur:

  • The difference in latitude and longitude is more than 5 degrees.

  • Latitude is above 85 degrees north or below 85 degrees south, which is also expressed as 85-90N degrees latitude (northern hemisphere) and 85-90S degrees latitude (southern hemisphere).

Site Locator

Site Locator
