Connect Test Leads and Data Canes to Allegro QX for Flagged or Fixed Increment Survey

CeCi software records potential readings using the Allegro QX digital voltmeter (DVM) and either a data cane or wire counter connected to the DVM. To set up the Allegro for close interval surveys, connect the test leads and data cane(s) to the DVM.

Test Leads Connection

To connect the test leads, plug test leads in the red INPUT and black COM jacks on the DVM.

Data Cane Connections

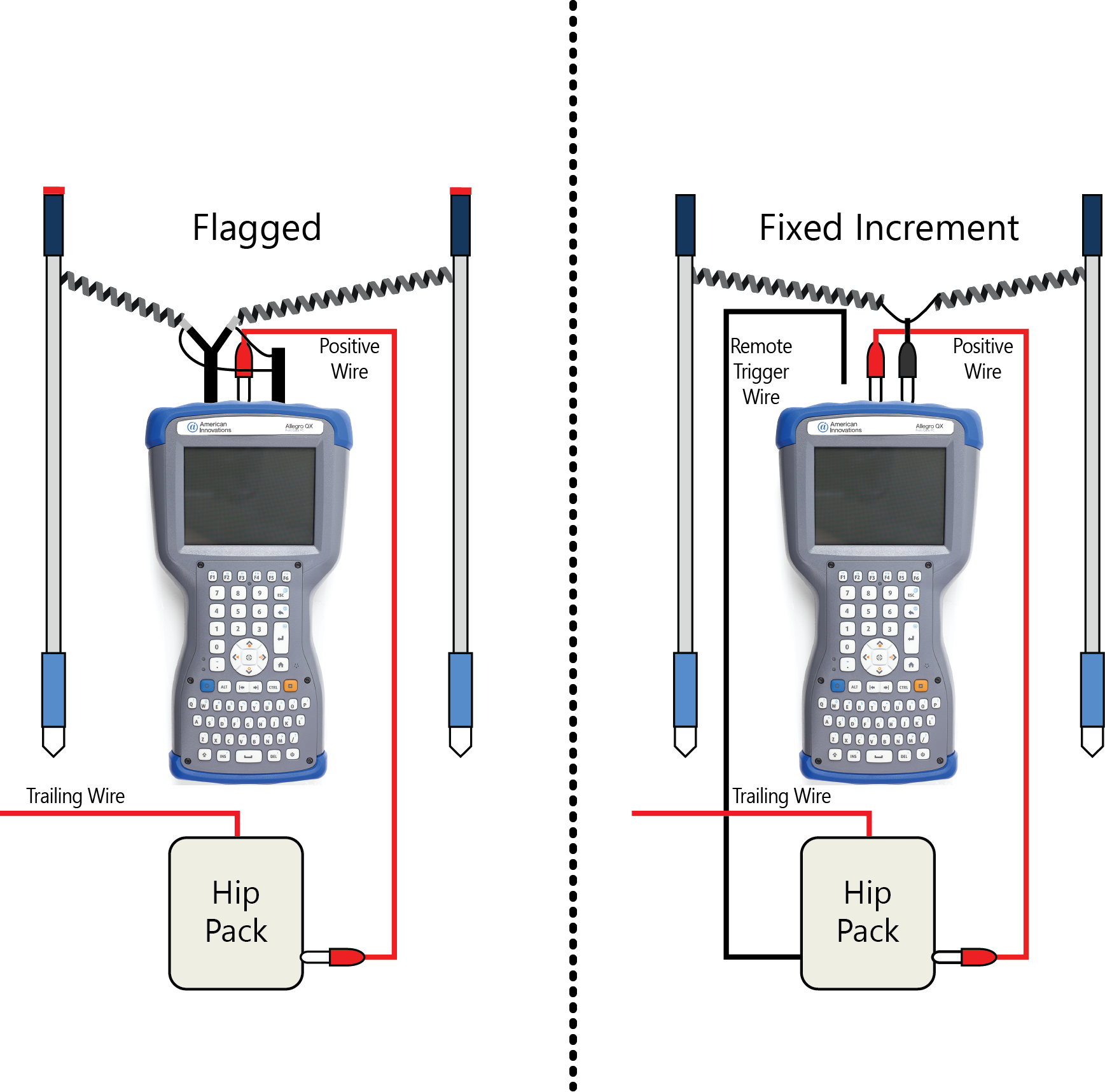

Connect the data cane into the Remote Trigger connection using one of the following configurations:

• Flagged Surveys Using Both Data Canes

• Flagged Surveys Using One Data Cane

• Fixed Increment Surveys

Flagged Surveys Using Both Data Canes

For Flagged surveys using both data canes as triggers, use a Y-connector to plug each data cane’s 3-pin connector into the Remote Trigger connection on the DVM.

If using a survey tray with data canes, connect the survey tray’s 3-pin connector into the Remote Trigger connection on the Allegro QX. Connect the data canes’ 3-pin connectors to the survey tray junction box.

Flagged Surveys Using One Data Cane

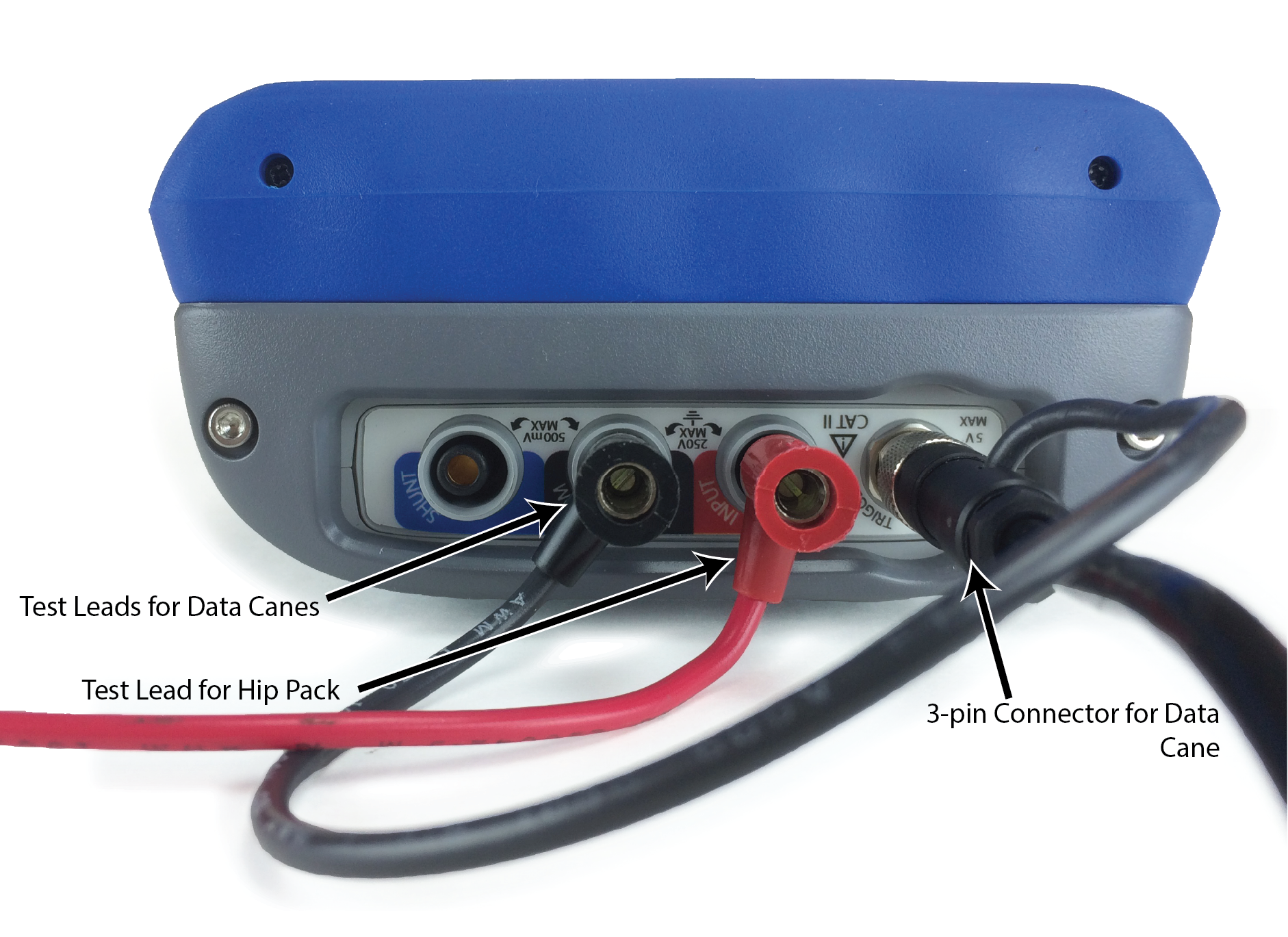

For Flagged surveys using only one data cane as a trigger, plug one connector to the Remote Trigger connection on the Allegro QX.

Fixed Increment Surveys

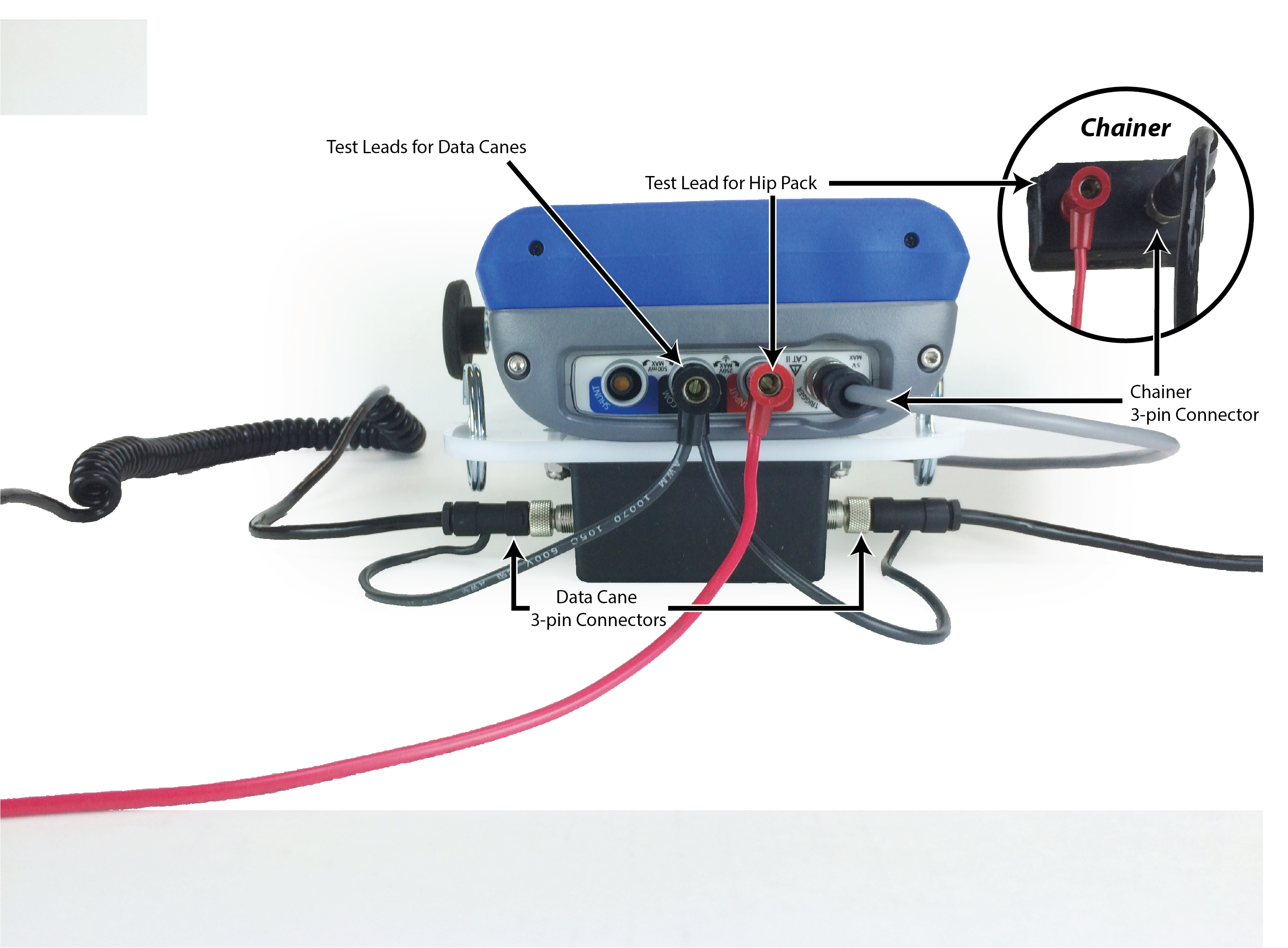

For Fixed Increment survey, connect the data canes and hip pack (chainer).

Flagged Surveys Using One Data Cane

For Flagged surveys using only one data cane as a trigger, plug one connector to the Remote Trigger connection on the Allegro QX.

Fixed Increment Surveys

For Fixed Increment survey, connect the data canes and hip pack (chainer).
