Move and Rename a Pipeline

Complete the following steps to move or rename a pipeline in the hierarchy:

1. Click the icon on the Select ROWs title bar (or double-click in the pane or select File > Select ROWs) to open the Select ROWs window.



   Selected ROWs Window

2. To move the selected pipeline to a different hierarchy folder, right-click the pipeline, and then select Cut in the shortcut menu.

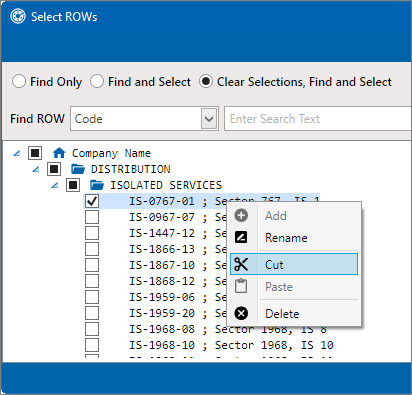

   Cut Shortcut Menu

3. Right-click on the hierarchy folder you want to move the pipeline to, and then select Paste in the shortcut menu.

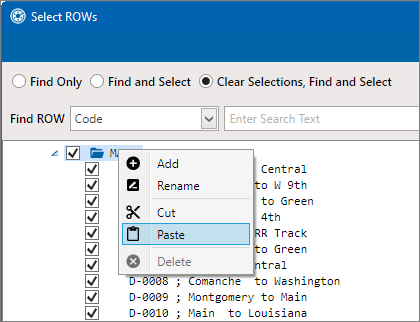

   Paste Shortcut Menu

4. To rename a selected pipeline, click Rename (or right-click the pipeline and select Rename in the shortcut menu). In the Rename Right of Way window, edit the ROW Code and/or ROW Name fields, and click Save to apply the change and close the window.

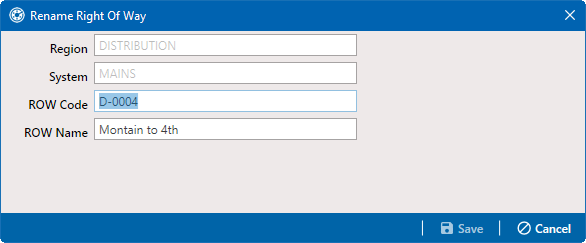

   Rename Pipeline
