Edit an Installed Schedule Definition

An installed schedule definition includes [PCS] in the title of the schedule definition name, such as [PCS] Installed Schedule Definition.

The procedure in this section explains how to complete the following tasks to edit an installed schedule definition:

• add a schedule type

• remove a schedule type

• revert an installed schedule definition

Complete the following steps to edit an installed schedule definition:

1. Click Data Entry > Define Schedules to open the Define Schedules window.



   Define Schedules

2. Select an installed schedule definition from the Select Schedule Definition drop-down list, such as [PCS] Installed Schedule Definition.

3. To add one or more schedule types to an installed schedule definition:

   1. Select an available schedule type listed in the Available Schedule Types pane. To select multiple schedule types, press the Ctrl key on the computer keyboard while selecting each schedule type.

   2. Click the button to move the schedule type(s) to the Selected Schedule Types pane. You can also double-click the schedule name to move it from pane to pane.

   3. Click Save.

4. To remove one or more schedule types from an installed schedule definition:

   1. Select a schedule type listed in the Selected Schedule Types pane. To select multiple schedule types, press the Ctrl key on the computer keyboard while selecting each schedule type.

   2. Click the button to move the schedule type to the Available Schedule Types pane. You can also double-click the schedule name to move it from pane to pane.

   3. Click Save.

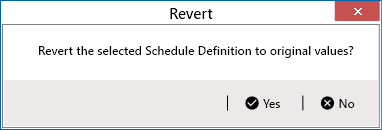

5. OPTIONAL: After saving changes to an installed schedule definition, and before closing the window, click Revert to revert the schedule definition to installed values. Click Yes when the Revert message displays.



   Revert Schedule Definition Message
