Add a Milepost User Defined Field

Set up a milepost user defined field (UDF) when you want to assign a different milepost format to a facility type on a pipeline. For example, if coupons require a different milepost format than other facility types on a pipeline, set up a milepost UDF and then assign the UDF at the facility type level in the Facility Location ID Formats mini-grid of Edit ROW Detail (Data Entry > Edit ROW Detail).

Complete the following steps to add a milepost UDF:

1. Click Tools > Field and UDF Customizations to open the Field and UDF Customizations window.



   Field and UDF Customization Window

2. If you want to select a grid layout theme, click Customize to open the Column Selections window, select a theme from the Select a Layout Theme field, and click Save.



   Column Selections Window

3. Select a table in the Properties pane that includes the data entry grid to which you want to add a UDF.

   Click the Properties header bar to collapse the Properties pane to expand the view of the grid. Click the bar again to expand the Properties pane.



   Field and UDF Customizations

4. Click Milepost in the toolbar to open the Add Milepost Field window.



   Add Milepost Field

5. Type a unique name for the UDF in the Caption field.

6. Select a milepost format from the Milepost Formats drop-down field.

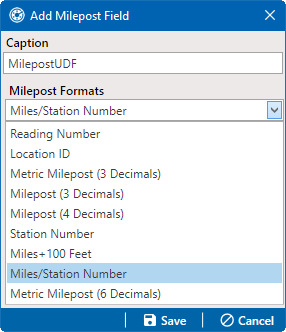

   Milepost Format Drop-down

7. Click Save to close the window and return to the Field and UDF Customizations window.

The UDF is now available for selection in the Facility Location ID Formats mini-grid of Edit ROW Detail. Refer to Pipeline Records for more information.
