CIS Survey Report and Graph

A report based on the columnar or graph report style that includes station numbers with associated survey readings for a selected survey folder and pipeline segment(s) selected in the Select ROWs window.

This report is only available in the ISM Module.

To view the report, select a Continuous Survey from the drop-down list and then click Print in the CIS Survey Report window.

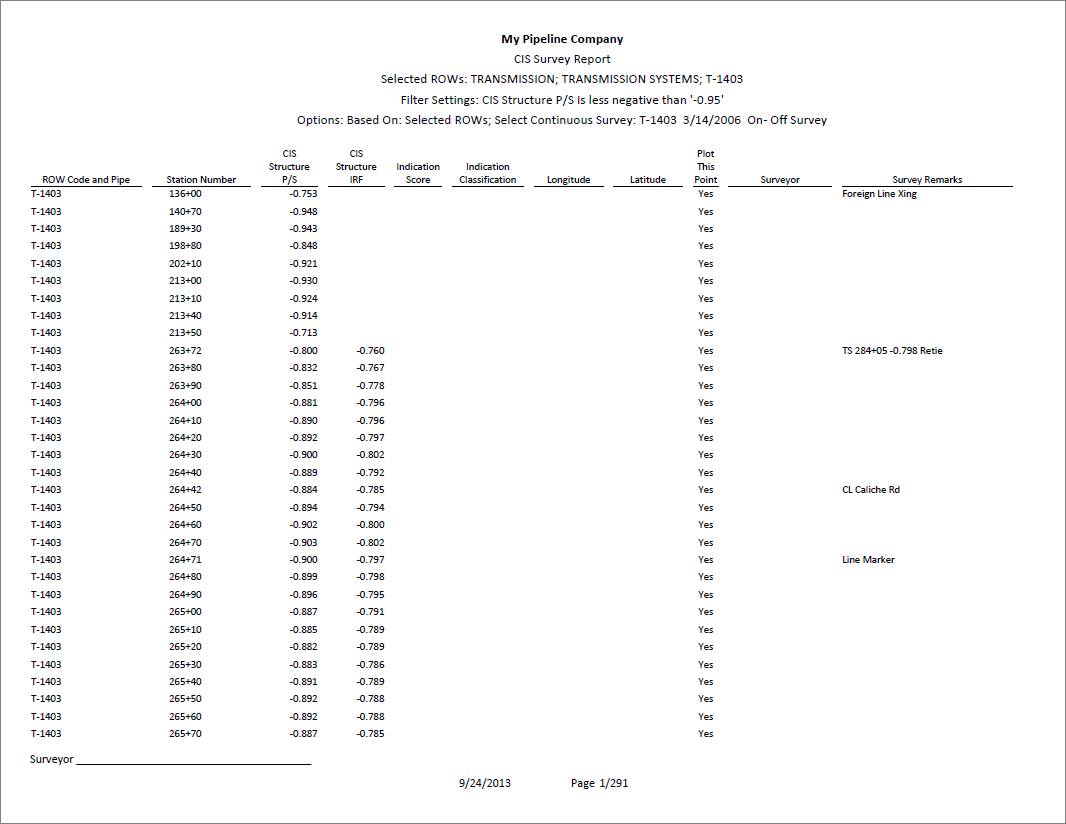

Example of Continuous Survey Report (Columnar Report Style)

Example of Continuous Survey Report (Columnar Report Style)

To view a graph version of the report, click the Graph tab in the CIS Survey Report window. Select a survey from the list shown in the Survey Selections pane of the window, and then click Graph.

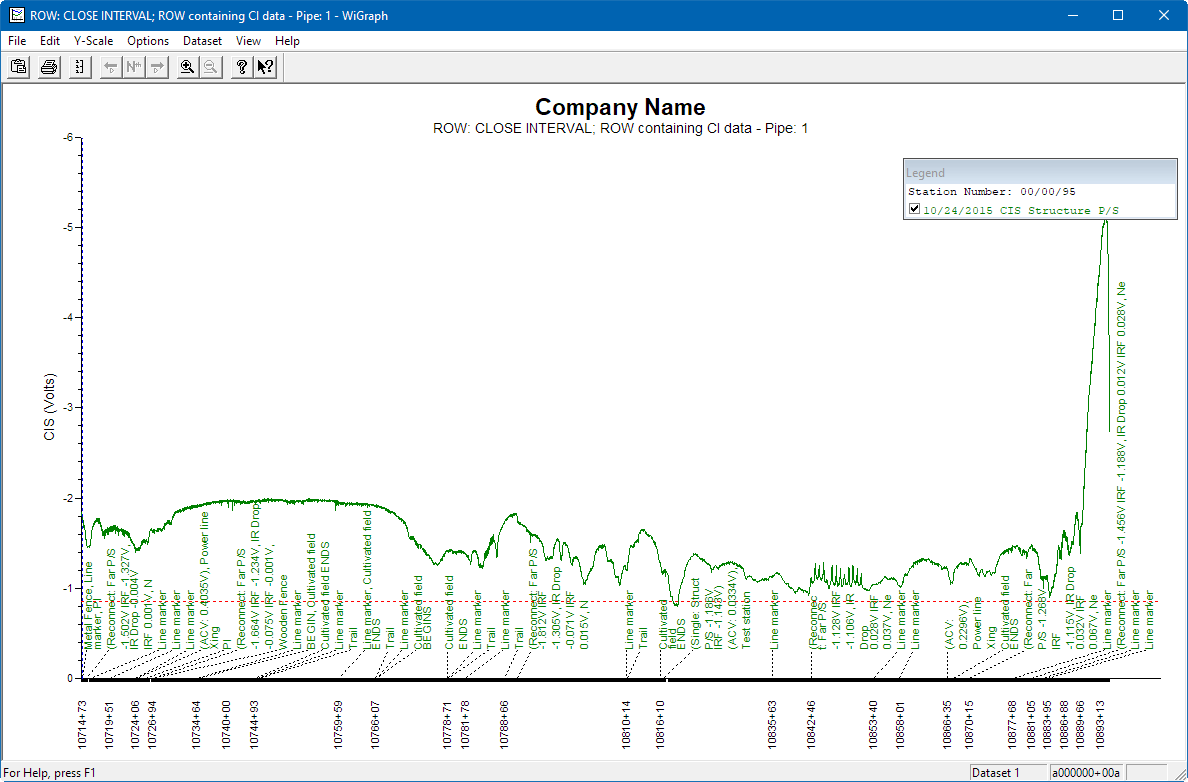

Example of Continuous Survey Report (Graph Report Style)

Example of Continuous Survey Report (Graph Report Style)
