Moving and Renaming a Pipeline

Complete the following steps to move or rename a pipeline in the hierarchy:

  1. If the Select ROWs window is not open, click File > Select ROWs and then select a pipeline in the hierarchy ( Move Pipeline).

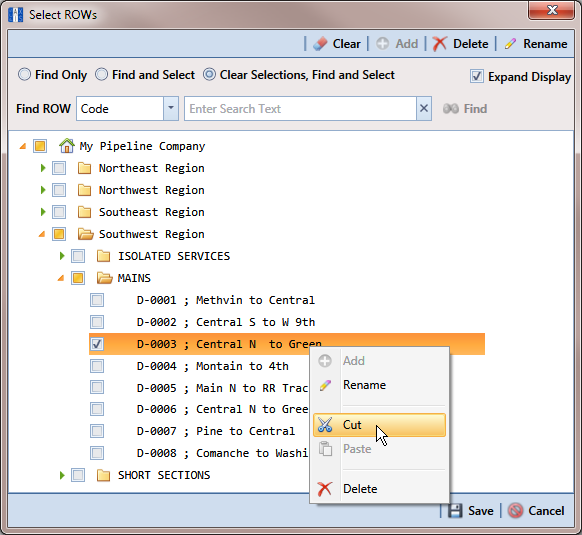

    Move Pipeline

    Move Pipeline

  2. To move the selected pipeline to a different hierarchy folder, right-click the pipeline and select Cut in the shortcut menu that opens. Right-click the hierarchy folder you want to move the pipeline to and then select Paste in the shortcut menu that opens ( Move Pipeline).

  3. To rename the selected pipeline, click Rename to open the Rename Right of Way dialog box (or rght-click the selected pipeline and select Rename in the shortcut menu) . Type a name for the pipeline in the pipeline Code field and click Save to apply the change and close the dialog box.

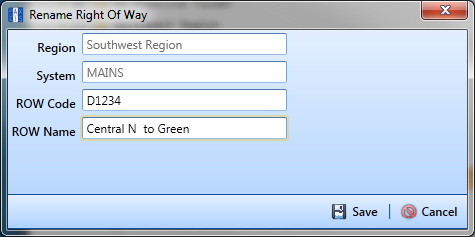

    Rename Pipeline

    Rename Pipeline
