Delete a Continuous Survey Folder

Deleting a continuous survey folder in Survey Folder Maintenance also deletes survey readings associated with the survey folder.

Deleting a continuous survey folder typically occurs when you want to clean up data that is no longer needed or when a survey folder has been created accidentally. A message displays listing all facility records assigned to the survey folder allowing you to either cancel the operation or delete the survey folder.

Compete the following steps to delete a continuous survey folder:

  1. Click Modules > Indirect Survey Manager (ISM) to open the ISM module.

  2. Click Data Entry > Continuous Survey Folder Maintenance to open the Continuous Survey Folder window. The window that opens is dependent on the type of continuous survey selected from the top row of tabs (CIS, AC CIS, DCVG, ACVG, ACCA, Soil Resistivity, or ILI). The example below has CIS selected.

    CIS Continuous Survey Folder Window

    CIS Continuous Survey Folder Window

  3. Click one of the tabs to select the type of continuous survey that you want to add a survey folder. For example, clicking the CIS tab adds a survey folder for close interval survey readings.

  4. Select a Layout Theme and/or Sort Theme and click Apply.

    CIS Continuous Survey Folders

    CIS Continuous Survey Folders

  5. Select a pipeline segment in the grid that includes the continuous survey folder you want to delete.

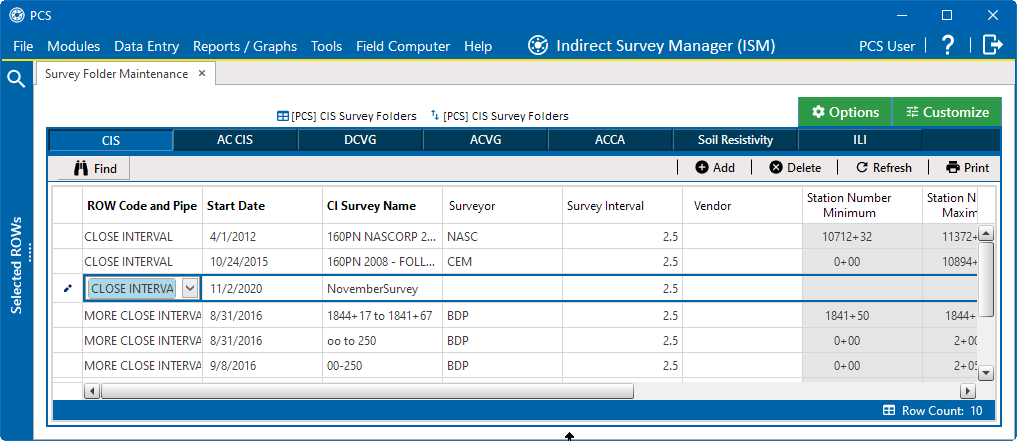

    Continuous Survey Folder Selected

    Survey Folder Maintenance

  6. Click Delete.

  7. In the Delete Record message window, click Delete.

    Delete Record

    Delete Record

  8. In the Delete message window, click Yes to delete the survey folder or No to cancel the operation.

    Warning Message

    Warning Message

    The survey folder and associated survey readings are permanently deleted from PCS.
